XML Schema Documentation

Table of Contents

top

Schema Document Properties

Target Namespace urn:hl7-org:v3
Element and Attribute Namespaces
  • Global element and attribute declarations belong to this schema's target namespace.
  • By default, local element declarations belong to this schema's target namespace.
  • By default, local attribute declarations have no namespace.
Schema Composition
Documentation Generated using schema builder version 1.21q2. Stylesheets: RoseTreeToMIFStaticModel.xsl version: 1.1 SplitModels.xsl version: 1.1 AssocInMif.xsl version:1.1 StaticMifToXsd.xsl version 1.1

Declared Namespaces

Prefix Namespace
Default namespace urn:hl7-org:v3
xml http://www.w3.org/XML/1998/namespace
hl7 urn:hl7-org:v3
xs http://www.w3.org/2001/XMLSchema
Schema Component Representation
<xs:schema targetNamespace="urn:hl7-org:v3" elementFormDefault="qualified">
<xs:include schemaLocation="datatypes.xsd"/>
<xs:include schemaLocation="more_datatypes_cda.xsd"/>
<xs:include schemaLocation="datatypes_cda.xsd"/>
<xs:include schemaLocation="voc.xsd"/>
<xs:include schemaLocation="StrucDoc.ActText.MembershipBallot01.Dec.2004.xsd"/>
...
</xs:schema>
top

Global Definitions

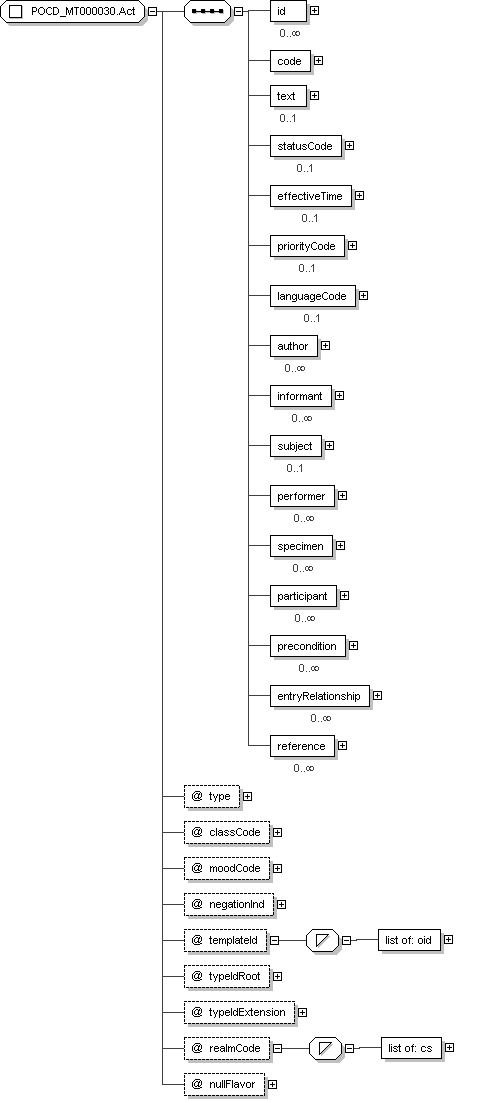

Complex Type: POCD_MT000030.Act

Super-types: None
Sub-types: None
Name POCD_MT000030.Act
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" cs [1]"
moodCode=" cs [1]"
negationInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Act">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD "/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" cs " use="required"/>
<xs:attribute name="moodCode" type=" cs " use="required"/>
<xs:attribute name="negationInd" type=" bl " use="optional"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

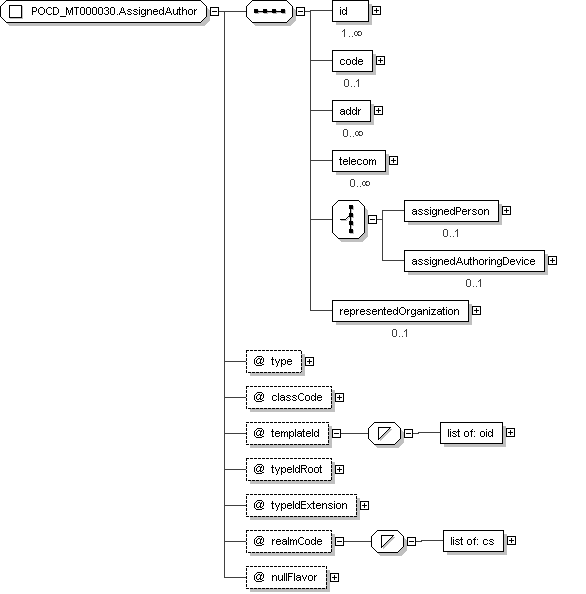

Complex Type: POCD_MT000030.AssignedAuthor

Super-types: None
Sub-types: None
Name POCD_MT000030.AssignedAuthor
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
Start Choice [1]
<hl7:assignedPerson> POCD_MT000030.Person </hl7:assignedPerson> [0..1]
<hl7:assignedAuthoringDevice> POCD_MT000030.AuthoringDevice </hl7:assignedAuthoringDevice> [0..1]
End Choice
<hl7:representedOrganization> POCD_MT000030.Organization </hl7:representedOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.AssignedAuthor">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:choice>
<xs:element name="assignedPerson" type=" POCD_MT000030.Person " minOccurs="0"/>
<xs:element name="assignedAuthoringDevice" type=" POCD_MT000030.AuthoringDevice " minOccurs="0"/>
</xs:choice>
<xs:element name="representedOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="ASSIGNED"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

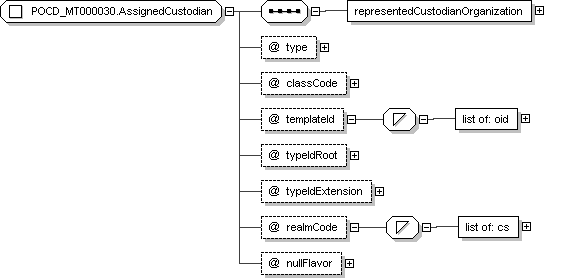

Complex Type: POCD_MT000030.AssignedCustodian

Super-types: None
Sub-types: None
Name POCD_MT000030.AssignedCustodian
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:representedCustodianOrganization> POCD_MT000030.CustodianOrganization </hl7:representedCustodianOrganization> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.AssignedCustodian">
<xs:sequence>
<xs:element name="representedCustodianOrganization" type=" POCD_MT000030.CustodianOrganization "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="ASSIGNED"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

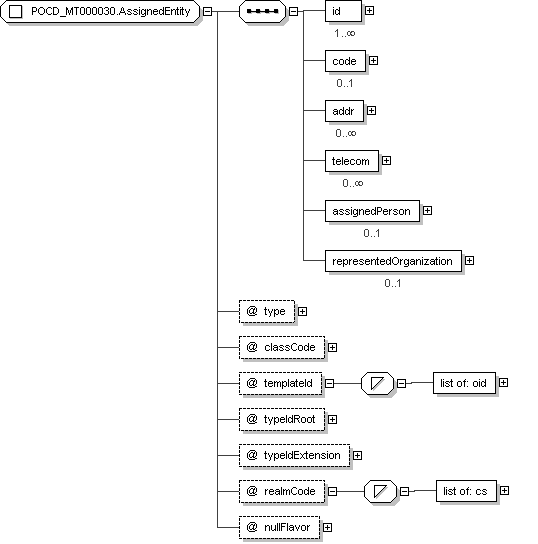

Complex Type: POCD_MT000030.AssignedEntity

Super-types: None
Sub-types: None
Name POCD_MT000030.AssignedEntity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:assignedPerson> POCD_MT000030.Person </hl7:assignedPerson> [0..1]
<hl7:representedOrganization> POCD_MT000030.Organization </hl7:representedOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.AssignedEntity">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="assignedPerson" type=" POCD_MT000030.Person " minOccurs="0"/>
<xs:element name="representedOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="ASSIGNED"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

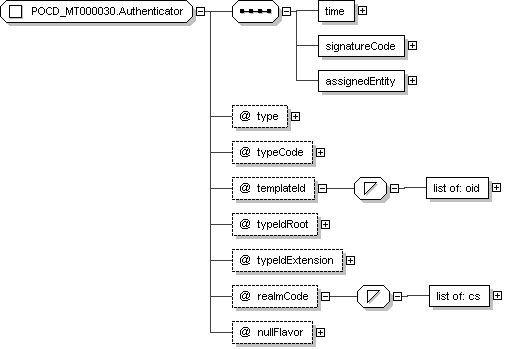

Complex Type: POCD_MT000030.Authenticator

Super-types: None
Sub-types: None
Name POCD_MT000030.Authenticator
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> TS </hl7:time> [1]
<hl7:signatureCode> CS </hl7:signatureCode> [1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Authenticator">
<xs:sequence>
<xs:element name="time" type=" TS "/>
<xs:element name="signatureCode" type=" CS "/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="AUTHEN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

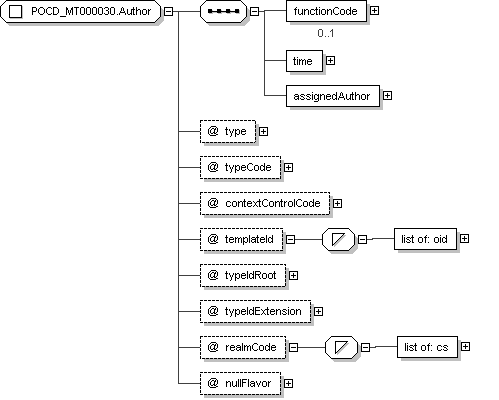

Complex Type: POCD_MT000030.Author

Super-types: None
Sub-types: None
Name POCD_MT000030.Author
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:functionCode> CE </hl7:functionCode> [0..1]
<hl7:time> TS </hl7:time> [1]
<hl7:assignedAuthor> POCD_MT000030.AssignedAuthor </hl7:assignedAuthor> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Author">
<xs:sequence>
<xs:element name="functionCode" type=" CE " minOccurs="0"/>
<xs:element name="time" type=" TS "/>
<xs:element name="assignedAuthor" type=" POCD_MT000030.AssignedAuthor "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="AUT"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.AuthoringDevice

Super-types: None
Sub-types: None
Name POCD_MT000030.AuthoringDevice
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:manufacturerModelName> SC </hl7:manufacturerModelName> [0..1]
<hl7:softwareName> SC </hl7:softwareName> [0..1]
<hl7:maintainer> POCD_MT000030.MaintainedEntity </hl7:maintainer> [0..*]
</...>

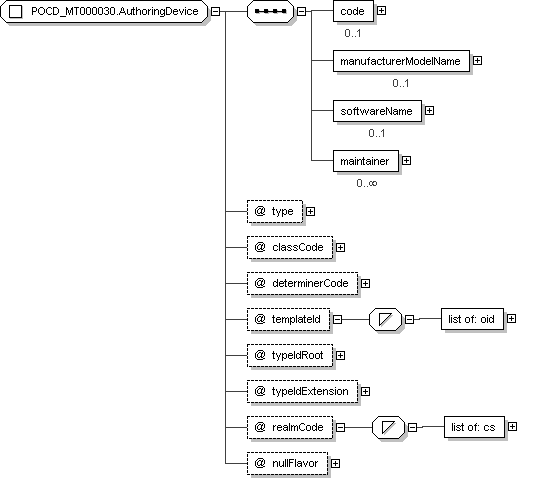

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.AuthoringDevice">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="manufacturerModelName" type=" SC " minOccurs="0"/>
<xs:element name="softwareName" type=" SC " minOccurs="0"/>
<xs:element name="maintainer" type=" POCD_MT000030.MaintainedEntity " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Device"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="DEV"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

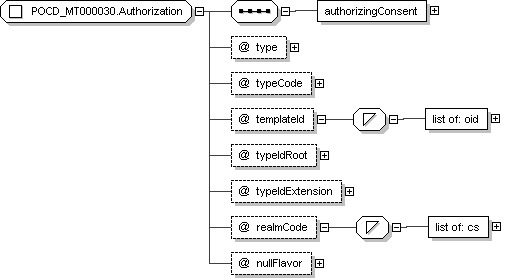

Complex Type: POCD_MT000030.Authorization

Super-types: None
Sub-types: None
Name POCD_MT000030.Authorization
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:authorizingConsent> POCD_MT000030.Consent </hl7:authorizingConsent> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Authorization">
<xs:sequence>
<xs:element name="authorizingConsent" type=" POCD_MT000030.Consent "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="AUTH"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

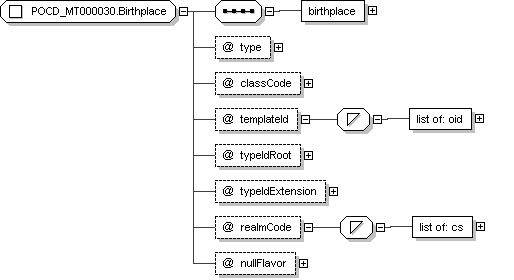

Complex Type: POCD_MT000030.Birthplace

Super-types: None
Sub-types: None
Name POCD_MT000030.Birthplace
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:birthplace> POCD_MT000030.Place </hl7:birthplace> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Birthplace">
<xs:sequence>
<xs:element name="birthplace" type=" POCD_MT000030.Place "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="BIRTHPL"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

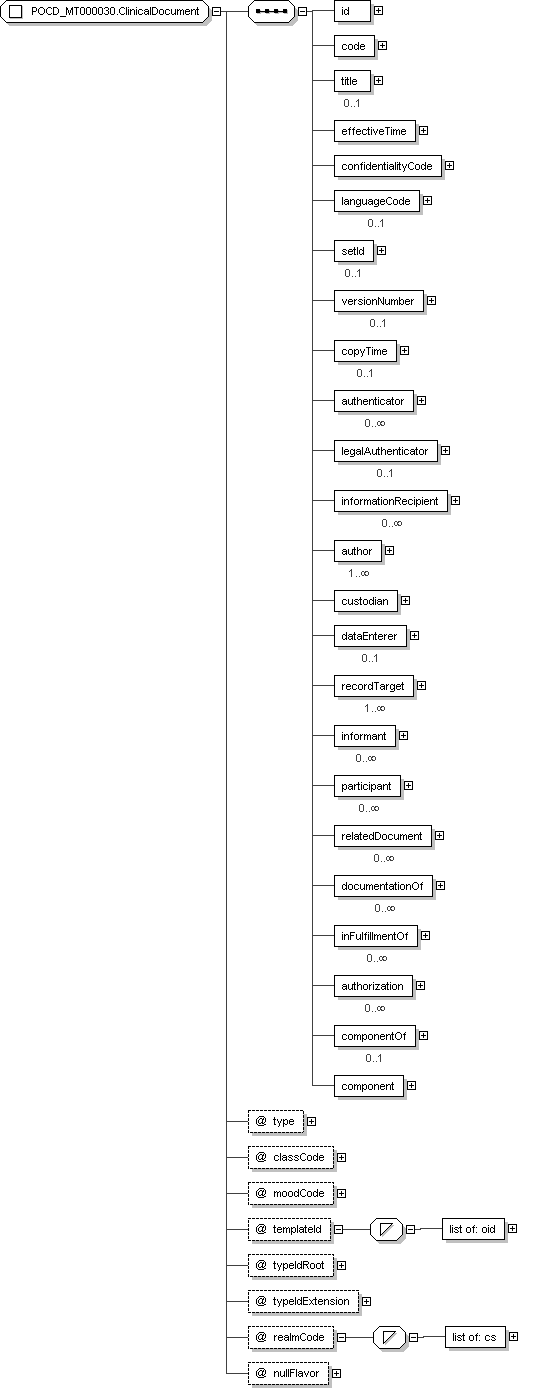

Complex Type: POCD_MT000030.ClinicalDocument

Super-types: None
Sub-types: None
Name POCD_MT000030.ClinicalDocument
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1]
<hl7:code> CE </hl7:code> [1]
<hl7:title> ST </hl7:title> [0..1]
<hl7:effectiveTime> TS </hl7:effectiveTime> [1]
<hl7:confidentialityCode> CE </hl7:confidentialityCode> [1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:setId> II </hl7:setId> [0..1]
<hl7:versionNumber> INT </hl7:versionNumber> [0..1]
<hl7:copyTime> TS </hl7:copyTime> [0..1]
<hl7:authenticator> POCD_MT000030.Authenticator </hl7:authenticator> [0..*]
<hl7:legalAuthenticator> POCD_MT000030.LegalAuthenticator </hl7:legalAuthenticator> [0..1]
<hl7:informationRecipient> POCD_MT000030.InformationRecipient </hl7:informationRecipient> [0..*]
<hl7:author> POCD_MT000030.Author </hl7:author> [1..*]
<hl7:custodian> POCD_MT000030.Custodian </hl7:custodian> [1]
<hl7:dataEnterer> POCD_MT000030.DataEnterer </hl7:dataEnterer> [0..1]
<hl7:recordTarget> POCD_MT000030.RecordTarget </hl7:recordTarget> [1..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:participant> POCD_MT000030.Participant1 </hl7:participant> [0..*]
<hl7:relatedDocument> POCD_MT000030.RelatedDocument </hl7:relatedDocument> [0..*]
<hl7:documentationOf> POCD_MT000030.DocumentationOf </hl7:documentationOf> [0..*]
<hl7:inFulfillmentOf> POCD_MT000030.InFulfillmentOf </hl7:inFulfillmentOf> [0..*]
<hl7:authorization> POCD_MT000030.Authorization </hl7:authorization> [0..*]
<hl7:componentOf> POCD_MT000030.Component1 </hl7:componentOf> [0..1]
<hl7:component> POCD_MT000030.Component2 </hl7:component> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ClinicalDocument">
<xs:sequence>
<xs:element name="id" type=" II "/>
<xs:element name="code" type=" CE "/>
<xs:element name="title" type=" ST " minOccurs="0"/>
<xs:element name="effectiveTime" type=" TS "/>
<xs:element name="confidentialityCode" type=" CE "/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="setId" type=" II " minOccurs="0"/>
<xs:element name="versionNumber" type=" INT " minOccurs="0"/>
<xs:element name="copyTime" type=" TS " minOccurs="0"/>
<xs:element name="authenticator" type=" POCD_MT000030.Authenticator " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="legalAuthenticator" type=" POCD_MT000030.LegalAuthenticator " minOccurs="0"/>
<xs:element name="informationRecipient" type=" POCD_MT000030.InformationRecipient " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="author" type=" POCD_MT000030.Author " maxOccurs="unbounded"/>
<xs:element name="custodian" type=" POCD_MT000030.Custodian "/>
<xs:element name="dataEnterer" type=" POCD_MT000030.DataEnterer " minOccurs="0"/>
<xs:element name="recordTarget" type=" POCD_MT000030.RecordTarget " maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant1 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="relatedDocument" type=" POCD_MT000030.RelatedDocument " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="documentationOf" type=" POCD_MT000030.DocumentationOf " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="inFulfillmentOf" type=" POCD_MT000030.InFulfillmentOf " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="authorization" type=" POCD_MT000030.Authorization " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="componentOf" type=" POCD_MT000030.Component1 " minOccurs="0"/>
<xs:element name="component" type=" POCD_MT000030.Component2 "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Document"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOCCLIN"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " default="2.16.840.1.113883.1.3"/>
<xs:attribute name="typeIdExtension" type=" xs:string " default="POCD_HD000030"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Component1

Super-types: None
Sub-types: None
Name POCD_MT000030.Component1
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:encompassingEncounter> POCD_MT000030.EncompassingEncounter </hl7:encompassingEncounter> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Component1">
<xs:sequence>
<xs:element name="encompassingEncounter" type=" POCD_MT000030.EncompassingEncounter "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="COMP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

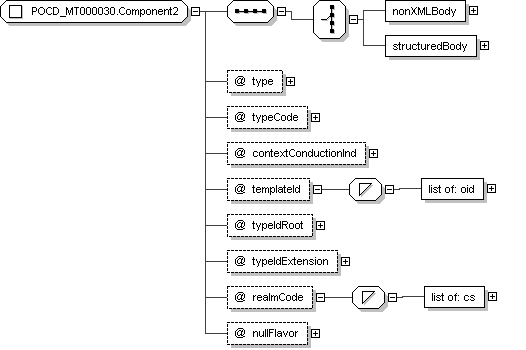

Complex Type: POCD_MT000030.Component2

Super-types: None
Sub-types: None
Name POCD_MT000030.Component2
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
contextConductionInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
Start Choice [1]
<hl7:nonXMLBody> POCD_MT000030.NonXMLBody </hl7:nonXMLBody> [1]
<hl7:structuredBody> POCD_MT000030.StructuredBody </hl7:structuredBody> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Component2">
<xs:sequence>
<xs:choice>
<xs:element name="nonXMLBody" type=" POCD_MT000030.NonXMLBody "/>
<xs:element name="structuredBody" type=" POCD_MT000030.StructuredBody "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="COMP"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Component3

Super-types: None
Sub-types: None
Name POCD_MT000030.Component3
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
contextConductionInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:section> POCD_MT000030.Section </hl7:section> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Component3">
<xs:sequence>
<xs:element name="section" type=" POCD_MT000030.Section "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="COMP"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

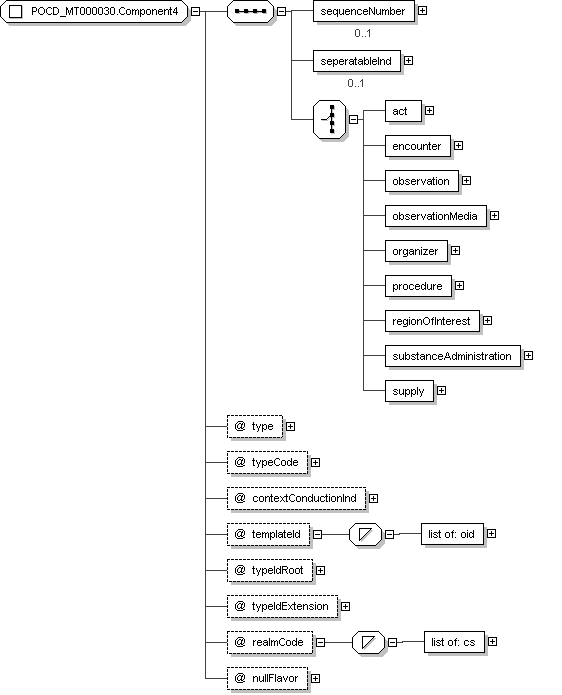

Complex Type: POCD_MT000030.Component4

Super-types: None
Sub-types: None
Name POCD_MT000030.Component4
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
contextConductionInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:sequenceNumber> INT </hl7:sequenceNumber> [0..1]
<hl7:seperatableInd> BL </hl7:seperatableInd> [0..1]
Start Choice [1]
<hl7:act> POCD_MT000030.Act </hl7:act> [1]
<hl7:encounter> POCD_MT000030.Encounter </hl7:encounter> [1]
<hl7:observation> POCD_MT000030.Observation </hl7:observation> [1]
<hl7:observationMedia> POCD_MT000030.ObservationMedia </hl7:observationMedia> [1]
<hl7:organizer> POCD_MT000030.Organizer </hl7:organizer> [1]
<hl7:procedure> POCD_MT000030.Procedure </hl7:procedure> [1]
<hl7:regionOfInterest> POCD_MT000030.RegionOfInterest </hl7:regionOfInterest> [1]
<hl7:substanceAdministration> POCD_MT000030.SubstanceAdministration </hl7:substanceAdministration> [1]
<hl7:supply> POCD_MT000030.Supply </hl7:supply> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Component4">
<xs:sequence>
<xs:element name="sequenceNumber" type=" INT " minOccurs="0"/>
<xs:element name="seperatableInd" type=" BL " minOccurs="0"/>
<xs:choice>
<xs:element name="act" type=" POCD_MT000030.Act "/>
<xs:element name="encounter" type=" POCD_MT000030.Encounter "/>
<xs:element name="observation" type=" POCD_MT000030.Observation "/>
<xs:element name="observationMedia" type=" POCD_MT000030.ObservationMedia "/>
<xs:element name="organizer" type=" POCD_MT000030.Organizer "/>
<xs:element name="procedure" type=" POCD_MT000030.Procedure "/>
<xs:element name="regionOfInterest" type=" POCD_MT000030.RegionOfInterest "/>
<xs:element name="substanceAdministration" type=" POCD_MT000030.SubstanceAdministration "/>
<xs:element name="supply" type=" POCD_MT000030.Supply "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="COMP"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Component5

Super-types: None
Sub-types: None
Name POCD_MT000030.Component5
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
contextConductionInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:section> POCD_MT000030.Section </hl7:section> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Component5">
<xs:sequence>
<xs:element name="section" type=" POCD_MT000030.Section "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="COMP"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Consent

Super-types: None
Sub-types: None
Name POCD_MT000030.Consent
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Consent">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="statusCode" type=" CS "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="CONS"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

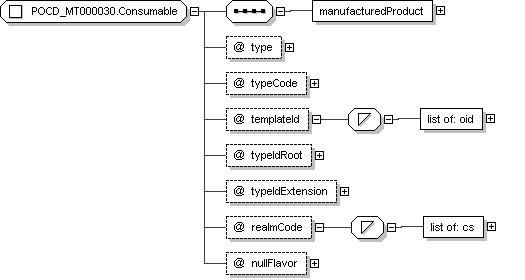

Complex Type: POCD_MT000030.Consumable

Super-types: None
Sub-types: None
Name POCD_MT000030.Consumable
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:manufacturedProduct> POCD_MT000030.ManufacturedProduct </hl7:manufacturedProduct> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Consumable">
<xs:sequence>
<xs:element name="manufacturedProduct" type=" POCD_MT000030.ManufacturedProduct "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="CSM"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Criterion

Super-types: None
Sub-types: None
Name POCD_MT000030.Criterion
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:value> ANY </hl7:value> [0..1]
</...>

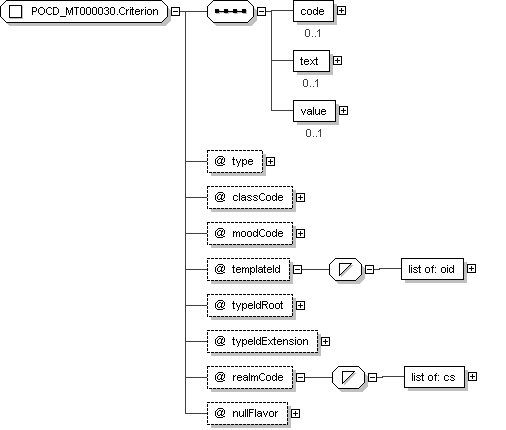

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Criterion">
<xs:sequence>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="value" type=" ANY " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="OBS"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN.CRT"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

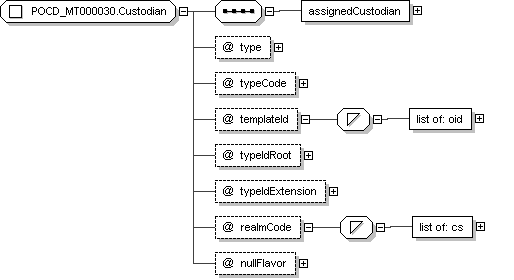

Complex Type: POCD_MT000030.Custodian

Super-types: None
Sub-types: None
Name POCD_MT000030.Custodian
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:assignedCustodian> POCD_MT000030.AssignedCustodian </hl7:assignedCustodian> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Custodian">
<xs:sequence>
<xs:element name="assignedCustodian" type=" POCD_MT000030.AssignedCustodian "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="CST"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.CustodianOrganization

Super-types: None
Sub-types: None
Name POCD_MT000030.CustodianOrganization
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:name> ON </hl7:name> [0..1]
<hl7:telecom> TEL </hl7:telecom> [0..1]
<hl7:addr> AD </hl7:addr> [0..1]
</...>

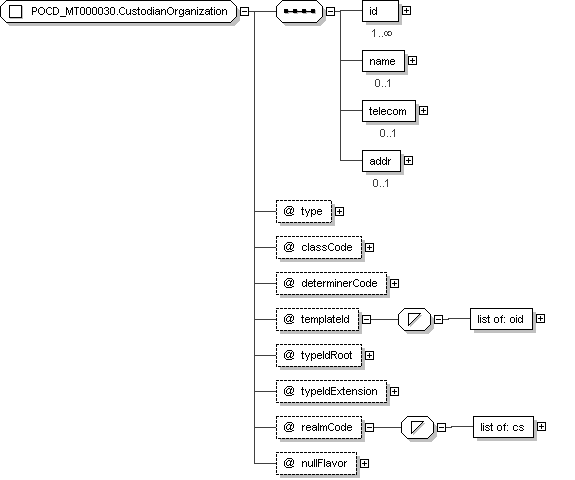

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.CustodianOrganization">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="name" type=" ON " minOccurs="0"/>
<xs:element name="telecom" type=" TEL " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Organization"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="ORG"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.DataEnterer

Super-types: None
Sub-types: None
Name POCD_MT000030.DataEnterer
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> TS </hl7:time> [0..1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>

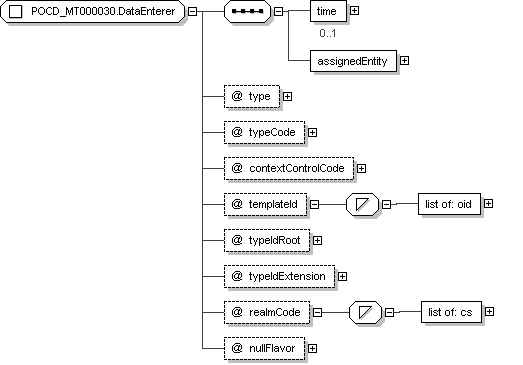

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.DataEnterer">
<xs:sequence>
<xs:element name="time" type=" TS " minOccurs="0"/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="ENT"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

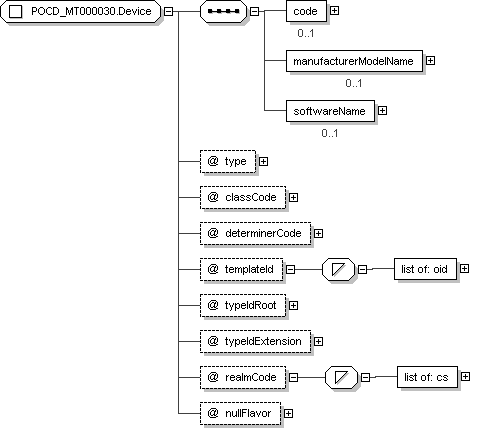

Complex Type: POCD_MT000030.Device

Super-types: None
Sub-types: None
Name POCD_MT000030.Device
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:manufacturerModelName> SC </hl7:manufacturerModelName> [0..1]
<hl7:softwareName> SC </hl7:softwareName> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Device">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="manufacturerModelName" type=" SC " minOccurs="0"/>
<xs:element name="softwareName" type=" SC " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Device"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="DEV"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.DocumentationOf

Super-types: None
Sub-types: None
Name POCD_MT000030.DocumentationOf
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:serviceEvent> POCD_MT000030.ServiceEvent </hl7:serviceEvent> [1]
</...>

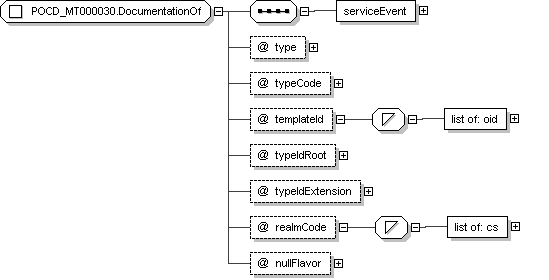

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.DocumentationOf">
<xs:sequence>
<xs:element name="serviceEvent" type=" POCD_MT000030.ServiceEvent "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="DOC"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.EncompassingEncounter

Super-types: None
Sub-types: None
Name POCD_MT000030.EncompassingEncounter
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [1]
<hl7:dischargeDispositionCode> CE </hl7:dischargeDispositionCode> [0..1]
<hl7:location> POCD_MT000030.Location </hl7:location> [0..1]
<hl7:encounterParticipant> POCD_MT000030.EncounterParticipant </hl7:encounterParticipant> [0..*]
<hl7:responsibleParty> POCD_MT000030.ResponsibleParty </hl7:responsibleParty> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.EncompassingEncounter">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS "/>
<xs:element name="dischargeDispositionCode" type=" CE " minOccurs="0"/>
<xs:element name="location" type=" POCD_MT000030.Location " minOccurs="0"/>
<xs:element name="encounterParticipant" type=" POCD_MT000030.EncounterParticipant " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="responsibleParty" type=" POCD_MT000030.ResponsibleParty " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="PatientEncounter"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="ENC"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Encounter

Super-types: None
Sub-types: None
Name POCD_MT000030.Encounter
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" cs [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>

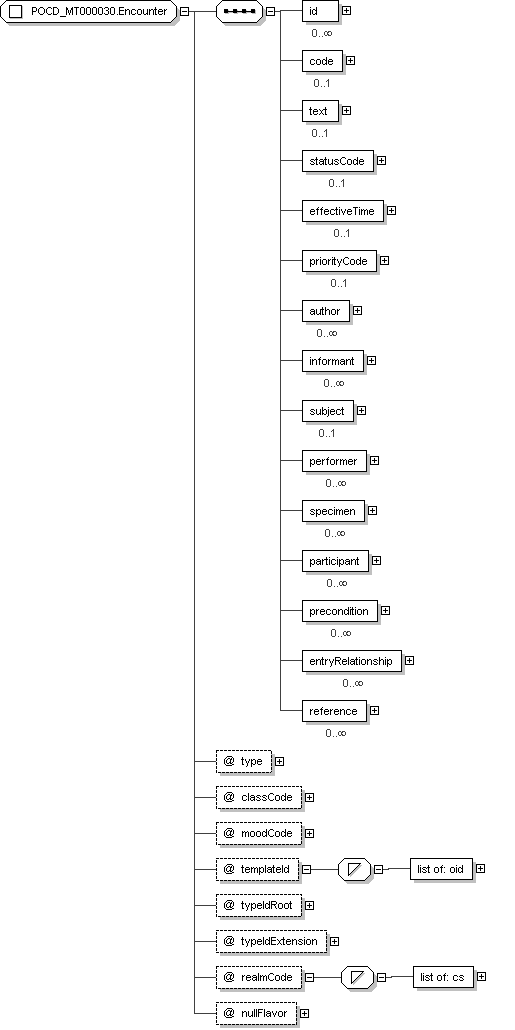

Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Encounter">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="PatientEncounter"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" cs " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.EncounterParticipant

Super-types: None
Sub-types: None
Name POCD_MT000030.EncounterParticipant
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" cs [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> IVL_TS </hl7:time> [0..1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.EncounterParticipant">
<xs:sequence>
<xs:element name="time" type=" IVL_TS " minOccurs="0"/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" cs " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Entity

Super-types: None
Sub-types: None
Name POCD_MT000030.Entity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:desc> ED </hl7:desc> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Entity">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="desc" type=" ED " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="EntityHeir"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="ENT"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Entry

Super-types: None
Sub-types: None
Name POCD_MT000030.Entry
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" cs [0..1]"
contextConductionInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
Start Choice [1]
<hl7:act> POCD_MT000030.Act </hl7:act> [1]
<hl7:encounter> POCD_MT000030.Encounter </hl7:encounter> [1]
<hl7:observation> POCD_MT000030.Observation </hl7:observation> [1]
<hl7:observationMedia> POCD_MT000030.ObservationMedia </hl7:observationMedia> [1]
<hl7:organizer> POCD_MT000030.Organizer </hl7:organizer> [1]
<hl7:procedure> POCD_MT000030.Procedure </hl7:procedure> [1]
<hl7:regionOfInterest> POCD_MT000030.RegionOfInterest </hl7:regionOfInterest> [1]
<hl7:substanceAdministration> POCD_MT000030.SubstanceAdministration </hl7:substanceAdministration> [1]
<hl7:supply> POCD_MT000030.Supply </hl7:supply> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Entry">
<xs:sequence>
<xs:choice>
<xs:element name="act" type=" POCD_MT000030.Act "/>
<xs:element name="encounter" type=" POCD_MT000030.Encounter "/>
<xs:element name="observation" type=" POCD_MT000030.Observation "/>
<xs:element name="observationMedia" type=" POCD_MT000030.ObservationMedia "/>
<xs:element name="organizer" type=" POCD_MT000030.Organizer "/>
<xs:element name="procedure" type=" POCD_MT000030.Procedure "/>
<xs:element name="regionOfInterest" type=" POCD_MT000030.RegionOfInterest "/>
<xs:element name="substanceAdministration" type=" POCD_MT000030.SubstanceAdministration "/>
<xs:element name="supply" type=" POCD_MT000030.Supply "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" cs " use="optional" default="COMP"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.EntryRelationship

Super-types: None
Sub-types: None
Name POCD_MT000030.EntryRelationship
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" cs [1]"
inversionInd=" bl [0..1]"
contextConductionInd=" bl [0..1]"
negationInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:sequenceNumber> INT </hl7:sequenceNumber> [0..1]
<hl7:seperatableInd> BL </hl7:seperatableInd> [0..1]
Start Choice [1]
<hl7:act> POCD_MT000030.Act </hl7:act> [1]
<hl7:encounter> POCD_MT000030.Encounter </hl7:encounter> [1]
<hl7:observation> POCD_MT000030.Observation </hl7:observation> [1]
<hl7:observationMedia> POCD_MT000030.ObservationMedia </hl7:observationMedia> [1]
<hl7:organizer> POCD_MT000030.Organizer </hl7:organizer> [1]
<hl7:procedure> POCD_MT000030.Procedure </hl7:procedure> [1]
<hl7:regionOfInterest> POCD_MT000030.RegionOfInterest </hl7:regionOfInterest> [1]
<hl7:substanceAdministration> POCD_MT000030.SubstanceAdministration </hl7:substanceAdministration> [1]
<hl7:supply> POCD_MT000030.Supply </hl7:supply> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.EntryRelationship">
<xs:sequence>
<xs:element name="sequenceNumber" type=" INT " minOccurs="0"/>
<xs:element name="seperatableInd" type=" BL " minOccurs="0"/>
<xs:choice>
<xs:element name="act" type=" POCD_MT000030.Act "/>
<xs:element name="encounter" type=" POCD_MT000030.Encounter "/>
<xs:element name="observation" type=" POCD_MT000030.Observation "/>
<xs:element name="observationMedia" type=" POCD_MT000030.ObservationMedia "/>
<xs:element name="organizer" type=" POCD_MT000030.Organizer "/>
<xs:element name="procedure" type=" POCD_MT000030.Procedure "/>
<xs:element name="regionOfInterest" type=" POCD_MT000030.RegionOfInterest "/>
<xs:element name="substanceAdministration" type=" POCD_MT000030.SubstanceAdministration "/>
<xs:element name="supply" type=" POCD_MT000030.Supply "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" cs " use="required"/>
<xs:attribute name="inversionInd" type=" bl " use="optional"/>
<xs:attribute name="contextConductionInd" type=" bl " use="optional" default="true"/>
<xs:attribute name="negationInd" type=" bl " use="optional"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ExternalAct

Super-types: None
Sub-types: None
Name POCD_MT000030.ExternalAct
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ExternalAct">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="ACT"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ExternalDocument

Super-types: None
Sub-types: None
Name POCD_MT000030.ExternalDocument
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:setId> II </hl7:setId> [0..1]
<hl7:versionNumber> INT </hl7:versionNumber> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ExternalDocument">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="setId" type=" II " minOccurs="0"/>
<xs:element name="versionNumber" type=" INT " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Document"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOC"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ExternalObservation

Super-types: None
Sub-types: None
Name POCD_MT000030.ExternalObservation
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ExternalObservation">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="OBS"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ExternalProcedure

Super-types: None
Sub-types: None
Name POCD_MT000030.ExternalProcedure
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ExternalProcedure">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Procedure"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="PROC"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Guardian

Super-types: None
Sub-types: None
Name POCD_MT000030.Guardian
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
Start Choice [1]
<hl7:guardianOrganization> POCD_MT000030.Organization </hl7:guardianOrganization> [1]
<hl7:guardianPerson> POCD_MT000030.Person </hl7:guardianPerson> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Guardian">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:choice>
<xs:element name="guardianOrganization" type=" POCD_MT000030.Organization "/>
<xs:element name="guardianPerson" type=" POCD_MT000030.Person "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="GUARD"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.HealthCareFacility

Super-types: None
Sub-types: None
Name POCD_MT000030.HealthCareFacility
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:location> POCD_MT000030.Place </hl7:location> [0..1]
<hl7:serviceProviderOrganization> POCD_MT000030.Organization </hl7:serviceProviderOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.HealthCareFacility">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="location" type=" POCD_MT000030.Place " minOccurs="0"/>
<xs:element name="serviceProviderOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="SDLOC"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Informant12

Super-types: None
Sub-types: None
Name POCD_MT000030.Informant12
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
Start Choice [1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
<hl7:mutualRelation> POCD_MT000030.RelatedEntity </hl7:mutualRelation> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Informant12">
<xs:sequence>
<xs:choice>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
<xs:element name="mutualRelation" type=" POCD_MT000030.RelatedEntity "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="INF"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.InformationRecipient

Super-types: None
Sub-types: None
Name POCD_MT000030.InformationRecipient
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" x_InformationRecipient [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:intendedRecipient> POCD_MT000030.IntendedRecipient </hl7:intendedRecipient> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.InformationRecipient">
<xs:sequence>
<xs:element name="intendedRecipient" type=" POCD_MT000030.IntendedRecipient "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" x_InformationRecipient " use="optional" default="PRCP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.InFulfillmentOf

Super-types: None
Sub-types: None
Name POCD_MT000030.InFulfillmentOf
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:priorOrder> POCD_MT000030.Order </hl7:priorOrder> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.InFulfillmentOf">
<xs:sequence>
<xs:element name="priorOrder" type=" POCD_MT000030.Order "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="FLFS"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.IntendedRecipient

Super-types: None
Sub-types: None
Name POCD_MT000030.IntendedRecipient
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" x_InformationRecipientRole [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:informationRecipient> POCD_MT000030.Person </hl7:informationRecipient> [0..1]
<hl7:receivedOrganization> POCD_MT000030.Organization </hl7:receivedOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.IntendedRecipient">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informationRecipient" type=" POCD_MT000030.Person " minOccurs="0"/>
<xs:element name="receivedOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" x_InformationRecipientRole " use="optional" default="ASSIGNED"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.LabeledDrug

Super-types: None
Sub-types: None
Name POCD_MT000030.LabeledDrug
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:name> EN </hl7:name> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.LabeledDrug">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="name" type=" EN " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ManufacturedMaterial"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="MMAT"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="KIND"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.LanguageCommunication

Super-types: None
Sub-types: None
Name POCD_MT000030.LanguageCommunication
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:modeCode> CE </hl7:modeCode> [0..1]
<hl7:proficiencyLevelCode> CE </hl7:proficiencyLevelCode> [0..1]
<hl7:preferenceInd> BL </hl7:preferenceInd> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.LanguageCommunication">
<xs:sequence>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="modeCode" type=" CE " minOccurs="0"/>
<xs:element name="proficiencyLevelCode" type=" CE " minOccurs="0"/>
<xs:element name="preferenceInd" type=" BL " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="LanguageCommunication"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.LegalAuthenticator

Super-types: None
Sub-types: None
Name POCD_MT000030.LegalAuthenticator
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> TS </hl7:time> [1]
<hl7:signatureCode> CS </hl7:signatureCode> [1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.LegalAuthenticator">
<xs:sequence>
<xs:element name="time" type=" TS "/>
<xs:element name="signatureCode" type=" CS "/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="LA"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Location

Super-types: None
Sub-types: None
Name POCD_MT000030.Location
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:healthCareFacility> POCD_MT000030.HealthCareFacility </hl7:healthCareFacility> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Location">
<xs:sequence>
<xs:element name="healthCareFacility" type=" POCD_MT000030.HealthCareFacility "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="LOC"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.MaintainedEntity

Super-types: None
Sub-types: None
Name POCD_MT000030.MaintainedEntity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:maintainingPerson> POCD_MT000030.Person </hl7:maintainingPerson> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.MaintainedEntity">
<xs:sequence>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="maintainingPerson" type=" POCD_MT000030.Person "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="MNT"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ManufacturedProduct

Super-types: None
Sub-types: None
Name POCD_MT000030.ManufacturedProduct
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
Start Choice [1]
<hl7:manufacturedLabeledDrug> POCD_MT000030.LabeledDrug </hl7:manufacturedLabeledDrug> [1]
<hl7:manufacturedMaterial> POCD_MT000030.Material </hl7:manufacturedMaterial> [1]
End Choice
<hl7:manufacturerOrganization> POCD_MT000030.Organization </hl7:manufacturerOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ManufacturedProduct">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:choice>
<xs:element name="manufacturedLabeledDrug" type=" POCD_MT000030.LabeledDrug "/>
<xs:element name="manufacturedMaterial" type=" POCD_MT000030.Material "/>
</xs:choice>
<xs:element name="manufacturerOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="MANU"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Material

Super-types: None
Sub-types: None
Name POCD_MT000030.Material
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:name> EN </hl7:name> [0..1]
<hl7:lotNumberText> ST </hl7:lotNumberText> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Material">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="name" type=" EN " minOccurs="0"/>
<xs:element name="lotNumberText" type=" ST " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ManufacturedMaterial"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="MMAT"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="KIND"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.NonXMLBody

Super-types: None
Sub-types: None
Name POCD_MT000030.NonXMLBody
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:text> ED </hl7:text> [1]
<hl7:confidentialityCode> CE </hl7:confidentialityCode> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.NonXMLBody">
<xs:sequence>
<xs:element name="text" type=" ED "/>
<xs:element name="confidentialityCode" type=" CE " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOCBODY"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Observation

Super-types: None
Sub-types: None
Name POCD_MT000030.Observation
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" x_ActMoodDocumentObservation [1]"
negationInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [1]
<hl7:derivationExpr> ST </hl7:derivationExpr> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
<hl7:repeatNumber> IVL_INT </hl7:repeatNumber> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:value> ANY </hl7:value> [0..*]
<hl7:interpretationCode> CE </hl7:interpretationCode> [0..*]
<hl7:methodCode> CE </hl7:methodCode> [0..*]
<hl7:targetSiteCode> CD </hl7:targetSiteCode> [0..*]
<hl7:referenceRange> POCD_MT000030.ReferenceRange </hl7:referenceRange> [0..*]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Observation">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD "/>
<xs:element name="derivationExpr" type=" ST " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
<xs:element name="repeatNumber" type=" IVL_INT " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="value" type=" ANY " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="interpretationCode" type=" CE " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="methodCode" type=" CE " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="targetSiteCode" type=" CD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="referenceRange" type=" POCD_MT000030.ReferenceRange " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" x_ActMoodDocumentObservation " use="required"/>
<xs:attribute name="negationInd" type=" bl " use="optional"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ObservationMedia

Super-types: None
Sub-types: None
Name POCD_MT000030.ObservationMedia
Abstract no
XML Instance Representation
<...
ID=" xs:ID [0..1]"
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" ActMood [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:value> ED </hl7:value> [1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ObservationMedia">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="value" type=" ED "/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" ActMood " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ObservationRange

Super-types: None
Sub-types: None
Name POCD_MT000030.ObservationRange
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:value> ANY </hl7:value> [0..1]
<hl7:interpretationCode> CE </hl7:interpretationCode> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ObservationRange">
<xs:sequence>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="value" type=" ANY " minOccurs="0"/>
<xs:element name="interpretationCode" type=" CE " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="OBS"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN.CRT"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Order

Super-types: None
Sub-types: None
Name POCD_MT000030.Order
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Order">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="ACT"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="RQO"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Organization

Super-types: None
Sub-types: None
Name POCD_MT000030.Organization
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:name> ON </hl7:name> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:standardIndustryClassCode> CE </hl7:standardIndustryClassCode> [0..1]
<hl7:playedOrganizationPartOf> POCD_MT000030.OrganizationPartOf </hl7:playedOrganizationPartOf> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Organization">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="name" type=" ON " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="standardIndustryClassCode" type=" CE " minOccurs="0"/>
<xs:element name="playedOrganizationPartOf" type=" POCD_MT000030.OrganizationPartOf " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Organization"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="ORG"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.OrganizationPartOf

Super-types: None
Sub-types: None
Name POCD_MT000030.OrganizationPartOf
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..*]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:wholeOrganization> POCD_MT000030.Organization </hl7:wholeOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.OrganizationPartOf">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="wholeOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="PART"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Organizer

Super-types: None
Sub-types: None
Name POCD_MT000030.Organizer
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" cs [1]"
moodCode=" ActMood [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:component> POCD_MT000030.Component4 </hl7:component> [0..*]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Organizer">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="statusCode" type=" CS "/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="component" type=" POCD_MT000030.Component4 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" cs " use="required"/>
<xs:attribute name="moodCode" type=" ActMood " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ParentDocument

Super-types: None
Sub-types: None
Name POCD_MT000030.ParentDocument
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:setId> II </hl7:setId> [0..1]
<hl7:versionNumber> INT </hl7:versionNumber> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ParentDocument">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="setId" type=" II " minOccurs="0"/>
<xs:element name="versionNumber" type=" INT " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Document"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOCCLIN"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Participant1

Super-types: None
Sub-types: None
Name POCD_MT000030.Participant1
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:functionCode> CE </hl7:functionCode> [0..1]
<hl7:time> IVL_TS </hl7:time> [0..1]
<hl7:participatingEntity> POCD_MT000030.ParticipatingEntity </hl7:participatingEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Participant1">
<xs:sequence>
<xs:element name="functionCode" type=" CE " minOccurs="0"/>
<xs:element name="time" type=" IVL_TS " minOccurs="0"/>
<xs:element name="participatingEntity" type=" POCD_MT000030.ParticipatingEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="required"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Participant2

Super-types: None
Sub-types: None
Name POCD_MT000030.Participant2
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> IVL_TS </hl7:time> [0..1]
<hl7:awarenessCode> CE </hl7:awarenessCode> [0..1]
<hl7:participantRole> POCD_MT000030.ParticipantRole </hl7:participantRole> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Participant2">
<xs:sequence>
<xs:element name="time" type=" IVL_TS " minOccurs="0"/>
<xs:element name="awarenessCode" type=" CE " minOccurs="0"/>
<xs:element name="participantRole" type=" POCD_MT000030.ParticipantRole "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="required"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ParticipantRole

Super-types: None
Sub-types: None
Name POCD_MT000030.ParticipantRole
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
Start Choice [1]
<hl7:playingPlayingEntity> POCD_MT000030.PlayingEntity </hl7:playingPlayingEntity> [0..1]
<hl7:playingDevice> POCD_MT000030.Device </hl7:playingDevice> [0..1]
End Choice
<hl7:scopingEntity> POCD_MT000030.Entity </hl7:scopingEntity> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ParticipantRole">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:choice>
<xs:element name="playingPlayingEntity" type=" POCD_MT000030.PlayingEntity " minOccurs="0"/>
<xs:element name="playingDevice" type=" POCD_MT000030.Device " minOccurs="0"/>
</xs:choice>
<xs:element name="scopingEntity" type=" POCD_MT000030.Entity " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="ROL"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ParticipatingEntity

Super-types: None
Sub-types: None
Name POCD_MT000030.ParticipatingEntity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClassAssociative [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:associatedPerson> POCD_MT000030.Person </hl7:associatedPerson> [0..1]
<hl7:scopingOrganization> POCD_MT000030.Organization </hl7:scopingOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ParticipatingEntity">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="associatedPerson" type=" POCD_MT000030.Person " minOccurs="0"/>
<xs:element name="scopingOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClassAssociative " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Patient

Super-types: None
Sub-types: None
Name POCD_MT000030.Patient
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:name> PN </hl7:name> [0..*]
<hl7:administrativeGenderCode> CE </hl7:administrativeGenderCode> [0..1]
<hl7:birthTime> TS </hl7:birthTime> [0..1]
<hl7:maritalStatusCode> CE </hl7:maritalStatusCode> [0..1]
<hl7:religiousAffiliationCode> CE </hl7:religiousAffiliationCode> [0..1]
<hl7:raceCode> CE </hl7:raceCode> [0..1]
<hl7:ethnicGroupCode> CE </hl7:ethnicGroupCode> [0..1]
<hl7:birthplace> POCD_MT000030.Birthplace </hl7:birthplace> [0..1]
<hl7:guardian> POCD_MT000030.Guardian </hl7:guardian> [0..*]
<hl7:languageCommunication> POCD_MT000030.LanguageCommunication </hl7:languageCommunication> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Patient">
<xs:sequence>
<xs:element name="name" type=" PN " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="administrativeGenderCode" type=" CE " minOccurs="0"/>
<xs:element name="birthTime" type=" TS " minOccurs="0"/>
<xs:element name="maritalStatusCode" type=" CE " minOccurs="0"/>
<xs:element name="religiousAffiliationCode" type=" CE " minOccurs="0"/>
<xs:element name="raceCode" type=" CE " minOccurs="0"/>
<xs:element name="ethnicGroupCode" type=" CE " minOccurs="0"/>
<xs:element name="birthplace" type=" POCD_MT000030.Birthplace " minOccurs="0"/>
<xs:element name="guardian" type=" POCD_MT000030.Guardian " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="languageCommunication" type=" POCD_MT000030.LanguageCommunication " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Person"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="PSN"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.PatientRole

Super-types: None
Sub-types: None
Name POCD_MT000030.PatientRole
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:patientPatient> POCD_MT000030.Patient </hl7:patientPatient> [0..1]
<hl7:providerOrganization> POCD_MT000030.Organization </hl7:providerOrganization> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.PatientRole">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="patientPatient" type=" POCD_MT000030.Patient " minOccurs="0"/>
<xs:element name="providerOrganization" type=" POCD_MT000030.Organization " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Patient"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="PAT"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Performer1

Super-types: None
Sub-types: None
Name POCD_MT000030.Performer1
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" cs [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:functionCode> CE </hl7:functionCode> [0..1]
<hl7:time> IVL_TS </hl7:time> [0..1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Performer1">
<xs:sequence>
<xs:element name="functionCode" type=" CE " minOccurs="0"/>
<xs:element name="time" type=" IVL_TS " minOccurs="0"/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" cs " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Performer2

Super-types: None
Sub-types: None
Name POCD_MT000030.Performer2
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:time> IVL_TS </hl7:time> [0..1]
<hl7:modeCode> CE </hl7:modeCode> [0..1]
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Performer2">
<xs:sequence>
<xs:element name="time" type=" IVL_TS " minOccurs="0"/>
<xs:element name="modeCode" type=" CE " minOccurs="0"/>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="PRF"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Person

Super-types: None
Sub-types: None
Name POCD_MT000030.Person
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:name> PN </hl7:name> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Person">
<xs:sequence>
<xs:element name="name" type=" PN " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Person"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="PSN"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Place

Super-types: None
Sub-types: None
Name POCD_MT000030.Place
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:name> EN </hl7:name> [0..1]
<hl7:addr> AD </hl7:addr> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Place">
<xs:sequence>
<xs:element name="name" type=" EN " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Place"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="PLC"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.PlayingEntity

Super-types: None
Sub-types: None
Name POCD_MT000030.PlayingEntity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:quantity> PQ </hl7:quantity> [0..*]
<hl7:name> PN </hl7:name> [0..*]
<hl7:desc> ED </hl7:desc> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.PlayingEntity">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="quantity" type=" PQ " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="name" type=" PN " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="desc" type=" ED " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="EntityHeir"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="ENT"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Precondition

Super-types: None
Sub-types: None
Name POCD_MT000030.Precondition
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:criterion> POCD_MT000030.Criterion </hl7:criterion> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Precondition">
<xs:sequence>
<xs:element name="criterion" type=" POCD_MT000030.Criterion "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="PRCN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Procedure

Super-types: None
Sub-types: None
Name POCD_MT000030.Procedure
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" cs [1]"
negationInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:methodCode> CE </hl7:methodCode> [0..*]
<hl7:approachSiteCode> CD </hl7:approachSiteCode> [0..*]
<hl7:targetSiteCode> CD </hl7:targetSiteCode> [0..*]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Procedure">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="methodCode" type=" CE " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="approachSiteCode" type=" CD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="targetSiteCode" type=" CD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Procedure"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" cs " use="required"/>
<xs:attribute name="negationInd" type=" bl " use="optional"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Product

Super-types: None
Sub-types: None
Name POCD_MT000030.Product
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:manufacturedProduct> POCD_MT000030.ManufacturedProduct </hl7:manufacturedProduct> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Product">
<xs:sequence>
<xs:element name="manufacturedProduct" type=" POCD_MT000030.ManufacturedProduct "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="PRD"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.RecordTarget

Super-types: None
Sub-types: None
Name POCD_MT000030.RecordTarget
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:patient> POCD_MT000030.PatientRole </hl7:patient> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.RecordTarget">
<xs:sequence>
<xs:element name="patient" type=" POCD_MT000030.PatientRole "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="RCT"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Reference

Super-types: None
Sub-types: None
Name POCD_MT000030.Reference
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" x_ActRelationshipExternalReference [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:seperatableInd> BL </hl7:seperatableInd> [0..1]
Start Choice [1]
<hl7:referredToExternalAct> POCD_MT000030.ExternalAct </hl7:referredToExternalAct> [1]
<hl7:referredToExternalObservation> POCD_MT000030.ExternalObservation </hl7:referredToExternalObservation> [1]
<hl7:referredToExternalProcedure> POCD_MT000030.ExternalProcedure </hl7:referredToExternalProcedure> [1]
<hl7:referredToExternalDocument> POCD_MT000030.ExternalDocument </hl7:referredToExternalDocument> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Reference">
<xs:sequence>
<xs:element name="seperatableInd" type=" BL " minOccurs="0"/>
<xs:choice>
<xs:element name="referredToExternalAct" type=" POCD_MT000030.ExternalAct "/>
<xs:element name="referredToExternalObservation" type=" POCD_MT000030.ExternalObservation "/>
<xs:element name="referredToExternalProcedure" type=" POCD_MT000030.ExternalProcedure "/>
<xs:element name="referredToExternalDocument" type=" POCD_MT000030.ExternalDocument "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" x_ActRelationshipExternalReference " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ReferenceRange

Super-types: None
Sub-types: None
Name POCD_MT000030.ReferenceRange
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ActRelationshipType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:referenceObservationRange> POCD_MT000030.ObservationRange </hl7:referenceObservationRange> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ReferenceRange">
<xs:sequence>
<xs:element name="referenceObservationRange" type=" POCD_MT000030.ObservationRange "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" ActRelationshipType " use="optional" default="REFV"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.RegionOfInterest

Super-types: None
Sub-types: None
Name POCD_MT000030.RegionOfInterest
Abstract no
XML Instance Representation
<...
ID=" xs:ID [0..1]"
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" ActMood [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [1..*]
<hl7:code> CS </hl7:code> [1]
<hl7:value> list_int </hl7:value> [1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.RegionOfInterest">
<xs:sequence>
<xs:element name="id" type=" II " maxOccurs="unbounded"/>
<xs:element name="code" type=" CS "/>
<xs:element name="value" type=" list_int "/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="type" type=" Classes " default="Observation"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" ActMood " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.RelatedDocument

Super-types: None
Sub-types: None
Name POCD_MT000030.RelatedDocument
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" x_ActRelationshipDocument [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:parentDocument> POCD_MT000030.ParentDocument </hl7:parentDocument> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.RelatedDocument">
<xs:sequence>
<xs:element name="parentDocument" type=" POCD_MT000030.ParentDocument "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActRelationship"/>
<xs:attribute name="typeCode" type=" x_ActRelationshipDocument " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.RelatedEntity

Super-types: None
Sub-types: None
Name POCD_MT000030.RelatedEntity
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClassMutualRelationship [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:relatedPerson> POCD_MT000030.Person </hl7:relatedPerson> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.RelatedEntity">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="relatedPerson" type=" POCD_MT000030.Person " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClassMutualRelationship " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.RelatedSubject

Super-types: None
Sub-types: None
Name POCD_MT000030.RelatedSubject
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" x_DocumentSubject [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:code> CE </hl7:code> [0..1]
<hl7:addr> AD </hl7:addr> [0..*]
<hl7:telecom> TEL </hl7:telecom> [0..*]
<hl7:documentSubject> POCD_MT000030.SubjectPerson </hl7:documentSubject> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.RelatedSubject">
<xs:sequence>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="addr" type=" AD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="telecom" type=" TEL " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="documentSubject" type=" POCD_MT000030.SubjectPerson " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" x_DocumentSubject " use="optional" default="PRS"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ResponsibleParty

Super-types: None
Sub-types: None
Name POCD_MT000030.ResponsibleParty
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:assignedEntity> POCD_MT000030.AssignedEntity </hl7:assignedEntity> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ResponsibleParty">
<xs:sequence>
<xs:element name="assignedEntity" type=" POCD_MT000030.AssignedEntity "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="RESP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Section

Super-types: None
Sub-types: None
Name POCD_MT000030.Section
Abstract no
XML Instance Representation
<...
ID=" xs:ID [0..1]"
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..1]
<hl7:code> CE </hl7:code> [0..1]
<hl7:title> ST </hl7:title> [0..1]
<hl7:text> text </hl7:text> [0..1]
<hl7:confidentialityCode> CE </hl7:confidentialityCode> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:entry> POCD_MT000030.Entry </hl7:entry> [0..*]
<hl7:component> POCD_MT000030.Component5 </hl7:component> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Section">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="title" type=" ST " minOccurs="0"/>
<xs:element name="text" type=" text " minOccurs="0"/>
<xs:element name="confidentialityCode" type=" CE " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="entry" type=" POCD_MT000030.Entry " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="component" type=" POCD_MT000030.Component5 " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOCSECT"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.ServiceEvent

Super-types: None
Sub-types: None
Name POCD_MT000030.ServiceEvent
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CE </hl7:code> [0..1]
<hl7:effectiveTime> IVL_TS </hl7:effectiveTime> [0..1]
<hl7:performer> POCD_MT000030.Performer1 </hl7:performer> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.ServiceEvent">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CE " minOccurs="0"/>
<xs:element name="effectiveTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer1 " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="ACT"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Specimen

Super-types: None
Sub-types: None
Name POCD_MT000030.Specimen
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:specimenRole> POCD_MT000030.SpecimenRole </hl7:specimenRole> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Specimen">
<xs:sequence>
<xs:element name="specimenRole" type=" POCD_MT000030.SpecimenRole "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="SPC"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.SpecimenRole

Super-types: None
Sub-types: None
Name POCD_MT000030.SpecimenRole
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" RoleClass [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:specimenPlayingEntity> POCD_MT000030.PlayingEntity </hl7:specimenPlayingEntity> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.SpecimenRole">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimenPlayingEntity" type=" POCD_MT000030.PlayingEntity " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="RoleHeir"/>
<xs:attribute name="classCode" type=" RoleClass " use="optional" default="SPEC"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.StructuredBody

Super-types: None
Sub-types: None
Name POCD_MT000030.StructuredBody
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [0..1]"
moodCode=" ActMood [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:confidentialityCode> CE </hl7:confidentialityCode> [0..1]
<hl7:languageCode> CS </hl7:languageCode> [0..1]
<hl7:component> POCD_MT000030.Component3 </hl7:component> [1..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.StructuredBody">
<xs:sequence>
<xs:element name="confidentialityCode" type=" CE " minOccurs="0"/>
<xs:element name="languageCode" type=" CS " minOccurs="0"/>
<xs:element name="component" type=" POCD_MT000030.Component3 " maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="ActHeir"/>
<xs:attribute name="classCode" type=" ActClass " use="optional" default="DOCBODY"/>
<xs:attribute name="moodCode" type=" ActMood " use="optional" default="EVN"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Subject

Super-types: None
Sub-types: None
Name POCD_MT000030.Subject
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
typeCode=" ParticipationType [0..1]"
contextControlCode=" ContextControl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:awarenessCode> CE </hl7:awarenessCode> [0..1]
<hl7:relatedSubject> POCD_MT000030.RelatedSubject </hl7:relatedSubject> [1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Subject">
<xs:sequence>
<xs:element name="awarenessCode" type=" CE " minOccurs="0"/>
<xs:element name="relatedSubject" type=" POCD_MT000030.RelatedSubject "/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Participation"/>
<xs:attribute name="typeCode" type=" ParticipationType " use="optional" default="SBJ"/>
<xs:attribute name="contextControlCode" type=" ContextControl " use="optional" default="OP"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.SubjectPerson

Super-types: None
Sub-types: None
Name POCD_MT000030.SubjectPerson
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" EntityClass [0..1]"
determinerCode=" EntityDeterminer [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:name> PN </hl7:name> [0..*]
<hl7:administrativeGenderCode> CE </hl7:administrativeGenderCode> [0..1]
<hl7:birthTime> TS </hl7:birthTime> [0..1]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.SubjectPerson">
<xs:sequence>
<xs:element name="name" type=" PN " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="administrativeGenderCode" type=" CE " minOccurs="0"/>
<xs:element name="birthTime" type=" TS " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Person"/>
<xs:attribute name="classCode" type=" EntityClass " use="optional" default="PSN"/>
<xs:attribute name="determinerCode" type=" EntityDeterminer " use="optional" default="INSTANCE"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.SubstanceAdministration

Super-types: None
Sub-types: None
Name POCD_MT000030.SubstanceAdministration
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" cs [1]"
negationInd=" bl [0..1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> SXCM_TS </hl7:effectiveTime> [0..*]
<hl7:priorityCode> CE </hl7:priorityCode> [0..1]
<hl7:repeatNumber> IVL_INT </hl7:repeatNumber> [0..1]
<hl7:routeCode> CE </hl7:routeCode> [0..1]
<hl7:approachSiteCode> CD </hl7:approachSiteCode> [0..*]
<hl7:doseQuantity> IVL_PQ </hl7:doseQuantity> [0..1]
<hl7:rateQuantity> IVL_PQ </hl7:rateQuantity> [0..1]
<hl7:maxDoseQuantity> RTO_PQ_PQ </hl7:maxDoseQuantity> [0..1]
<hl7:administrationUnitCode> CE </hl7:administrationUnitCode> [0..1]
<hl7:consumable> POCD_MT000030.Consumable </hl7:consumable> [1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.SubstanceAdministration">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" SXCM_TS " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0"/>
<xs:element name="repeatNumber" type=" IVL_INT " minOccurs="0"/>
<xs:element name="routeCode" type=" CE " minOccurs="0"/>
<xs:element name="approachSiteCode" type=" CD " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="doseQuantity" type=" IVL_PQ " minOccurs="0"/>
<xs:element name="rateQuantity" type=" IVL_PQ " minOccurs="0"/>
<xs:element name="maxDoseQuantity" type=" RTO_PQ_PQ " minOccurs="0"/>
<xs:element name="administrationUnitCode" type=" CE " minOccurs="0"/>
<xs:element name="consumable" type=" POCD_MT000030.Consumable "/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="SubstanceAdministration"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" cs " use="required"/>
<xs:attribute name="negationInd" type=" bl " use="optional"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Complex Type: POCD_MT000030.Supply

Super-types: None
Sub-types: None
Name POCD_MT000030.Supply
Abstract no
XML Instance Representation
<...
type=" Classes [0..1]"
classCode=" ActClass [1]"
moodCode=" cs [1]"
templateId="list of: oid [0..1]"
typeIdRoot=" xs:string [0..1]"
typeIdExtension=" xs:string [0..1]"
realmCode="list of: cs [0..1]"
nullFlavor=" cs [0..1]">
<hl7:id> II </hl7:id> [0..*]
<hl7:code> CD </hl7:code> [0..1]
<hl7:text> ED </hl7:text> [0..1]
<hl7:statusCode> CS </hl7:statusCode> [0..1]
<hl7:effectiveTime> SXCM_TS </hl7:effectiveTime> [0..1]
<hl7:priorityCode> CE </hl7:priorityCode> [0..*]
<hl7:repeatNumber> IVL_INT </hl7:repeatNumber> [0..1]
<hl7:independentInd> BL </hl7:independentInd> [0..1]
<hl7:quantity> PQ </hl7:quantity> [0..1]
<hl7:expectedUseTime> IVL_TS </hl7:expectedUseTime> [0..1]
<hl7:product> POCD_MT000030.Product </hl7:product> [0..1]
<hl7:author> POCD_MT000030.Author </hl7:author> [0..*]
<hl7:informant> POCD_MT000030.Informant12 </hl7:informant> [0..*]
<hl7:subject> POCD_MT000030.Subject </hl7:subject> [0..1]
<hl7:performer> POCD_MT000030.Performer2 </hl7:performer> [0..*]
<hl7:specimen> POCD_MT000030.Specimen </hl7:specimen> [0..*]
<hl7:participant> POCD_MT000030.Participant2 </hl7:participant> [0..*]
<hl7:precondition> POCD_MT000030.Precondition </hl7:precondition> [0..*]
<hl7:entryRelationship> POCD_MT000030.EntryRelationship </hl7:entryRelationship> [0..*]
<hl7:reference> POCD_MT000030.Reference </hl7:reference> [0..*]
</...>
Diagram
Schema Component Representation
<xs:complexType name="POCD_MT000030.Supply">
<xs:sequence>
<xs:element name="id" type=" II " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="code" type=" CD " minOccurs="0"/>
<xs:element name="text" type=" ED " minOccurs="0"/>
<xs:element name="statusCode" type=" CS " minOccurs="0"/>
<xs:element name="effectiveTime" type=" SXCM_TS " minOccurs="0"/>
<xs:element name="priorityCode" type=" CE " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="repeatNumber" type=" IVL_INT " minOccurs="0"/>
<xs:element name="independentInd" type=" BL " minOccurs="0"/>
<xs:element name="quantity" type=" PQ " minOccurs="0"/>
<xs:element name="expectedUseTime" type=" IVL_TS " minOccurs="0"/>
<xs:element name="product" type=" POCD_MT000030.Product " minOccurs="0"/>
<xs:element name="author" type=" POCD_MT000030.Author " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="informant" type=" POCD_MT000030.Informant12 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="subject" type=" POCD_MT000030.Subject " minOccurs="0"/>
<xs:element name="performer" type=" POCD_MT000030.Performer2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="specimen" type=" POCD_MT000030.Specimen " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="participant" type=" POCD_MT000030.Participant2 " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="precondition" type=" POCD_MT000030.Precondition " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="entryRelationship" type=" POCD_MT000030.EntryRelationship " minOccurs="0" maxOccurs="unbounded"/>
<xs:element name="reference" type=" POCD_MT000030.Reference " minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="type" type=" Classes " default="Supply"/>
<xs:attribute name="classCode" type=" ActClass " use="required"/>
<xs:attribute name="moodCode" type=" cs " use="required"/>
<xs:attribute name="templateId" use="optional">
<xs:simpleType>
<xs:list itemType=" oid "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="typeIdRoot" type=" xs:string " use="optional"/>
<xs:attribute name="typeIdExtension" type=" xs:string " use="optional"/>
<xs:attribute name="realmCode" use="optional">
<xs:simpleType>
<xs:list itemType=" cs "/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="nullFlavor" type=" cs " use="optional"/>
</xs:complexType>
top

Legend

Complex Type:

Schema Component Type

AusAddress

Schema Component Name
Super-types: Address < AusAddress (by extension)
Sub-types:
  • QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
Name AusAddress
Abstract no
The table above displays the properties of this schema component.
XML Instance Representation
<... country="Australia" >
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice [1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1] ?
</...>

The XML Instance Representation table above shows the schema component's content as an XML instance.

Schema Component Representation
<complexType name="AusAddress">
<complexContent>
<extension base=" Address ">
<sequence>
<element name="state" type=" AusStates "/>
<element name="postcode">
<simpleType>
<restriction base=" string ">
<pattern value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute name="country" type=" string " fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
top

Glossary

Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.

All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.

Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.

Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.

Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.

Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.

Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.

Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.

Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.

Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.

Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.

Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).

Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.

Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.

Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.

Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.

Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

top

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:
