XML Schema Documentation

Table of Contents

top

Schema Document Properties

Target Namespace urn:hl7-org:v3
Element and Attribute Namespaces
  • Global element and attribute declarations belong to this schema's target namespace.
  • By default, local element declarations belong to this schema's target namespace.
  • By default, local attribute declarations have no namespace.
Schema Composition
  • This schema imports schema(s) from the following namespace(s):
    • http://www.w3.org/XML/1998/namespace (at xml.xsd)

Declared Namespaces

Prefix Namespace
Default namespace urn:hl7-org:v3
xml http://www.w3.org/XML/1998/namespace
xs http://www.w3.org/2001/XMLSchema
Schema Component Representation
<xs:schema targetNamespace="urn:hl7-org:v3" elementFormDefault="qualified">
<xs:import namespace="http://www.w3.org/XML/1998/namespace" schemaLocation="xml.xsd"/>
...
</xs:schema>
top

Global Declarations

Element: br

Name br
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<br/>
Diagram
Schema Component Representation
<xs:element name="br">
<xs:complexType/>
</xs:element>
top

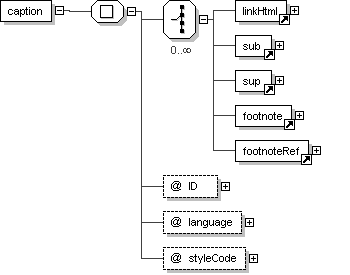

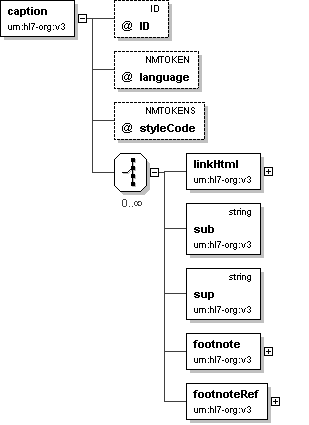

Element: caption

Name caption
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<caption
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
End Choice
</caption>
Diagram
Schema Component Representation
<xs:element name="caption">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

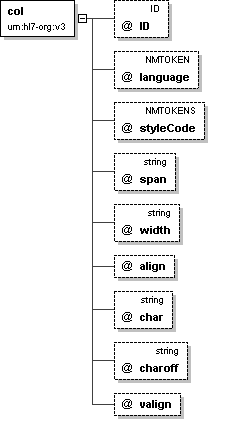

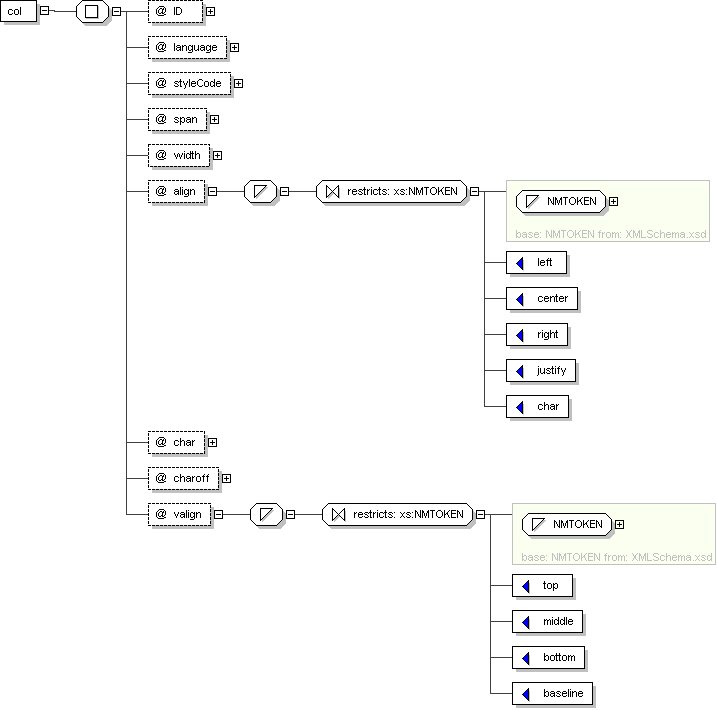

Element: col

Name col
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<col
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
span=" xs:string [0..1]"
width=" xs:string [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]"/>
Diagram
Schema Component Representation
<xs:element name="col">
<xs:complexType>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="span" type=" xs:string " default="1"/>
<xs:attribute name="width" type=" xs:string "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

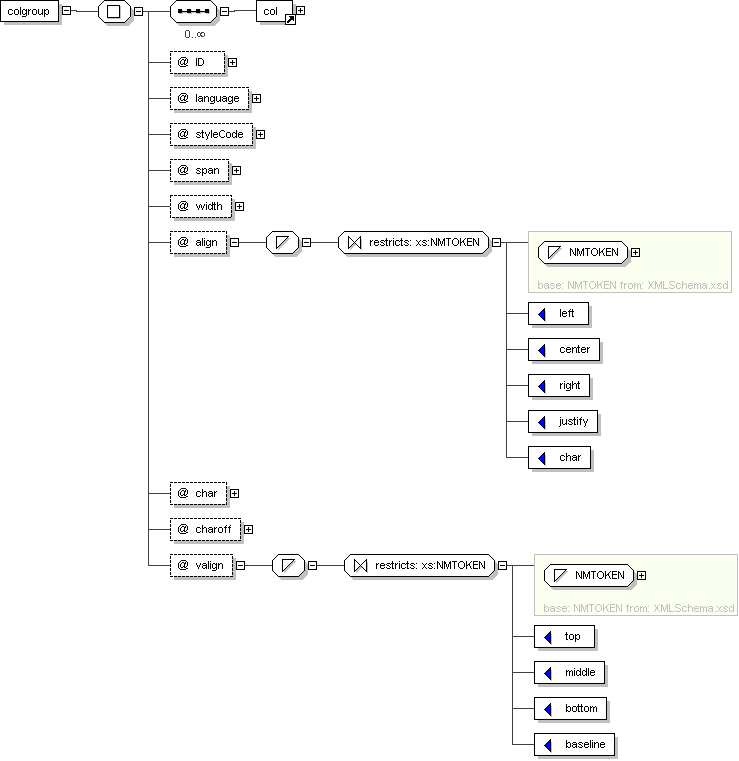

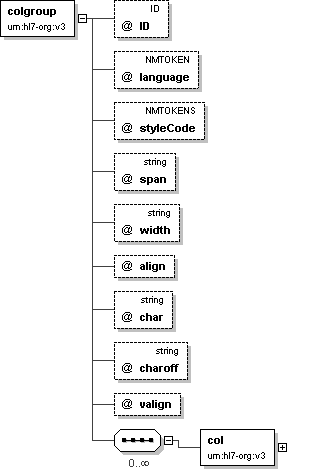

Element: colgroup

Name colgroup
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<colgroup
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
span=" xs:string [0..1]"
width=" xs:string [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
Start Sequence [0..*]
<col> ... </col> [1]
End Sequence
</colgroup>
Diagram
Schema Component Representation
<xs:element name="colgroup">
<xs:complexType>
<xs:sequence minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" col "/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="span" type=" xs:string " default="1"/>
<xs:attribute name="width" type=" xs:string "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

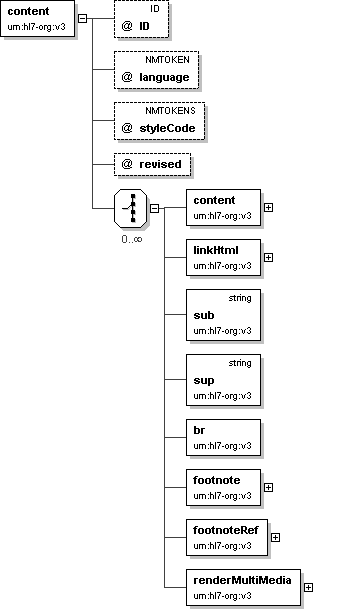

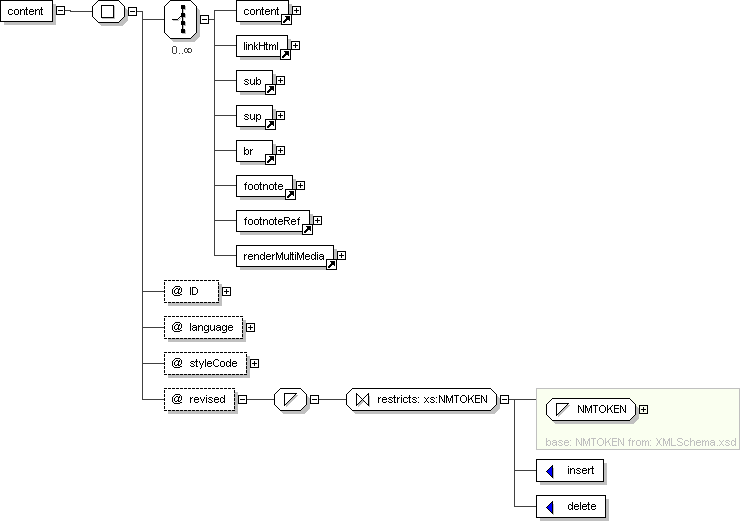

Element: content

Name content
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<content
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
revised=" xs:NMTOKEN (value comes from list: {'insert'|'delete'}) [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
End Choice
</content>
Diagram
Schema Component Representation
<xs:element name="content">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="revised">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="insert"/>
<xs:enumeration value="delete"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

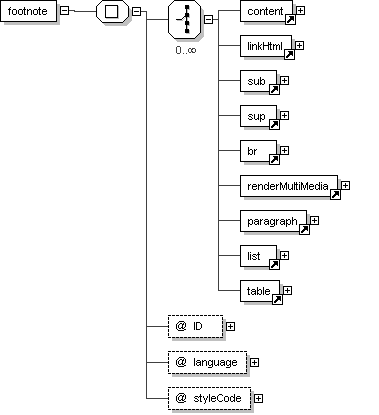

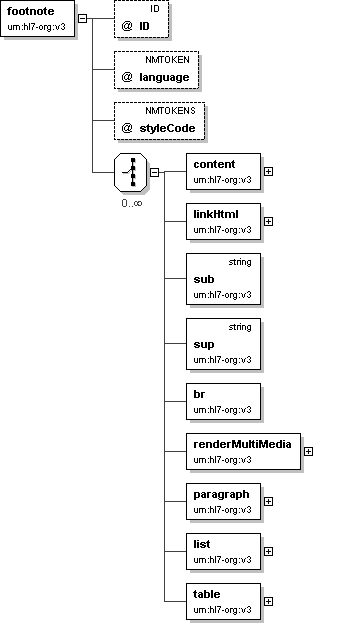

Element: footnote

Name footnote
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<footnote
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
<paragraph> ... </paragraph> [1]
<list> ... </list> [1]
<table> ... </table> [1]
End Choice
</footnote>
Diagram
Schema Component Representation
<xs:element name="footnote">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" renderMultiMedia "/>
<xs:element ref=" paragraph "/>
<xs:element ref=" list "/>
<xs:element ref=" table "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

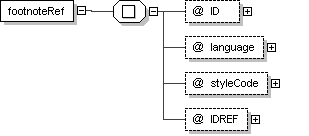

Element: footnoteRef

Name footnoteRef
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<footnoteRef
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
IDREF=" xs:IDREF [1]"/>
Diagram
Schema Component Representation
<xs:element name="footnoteRef">
<xs:complexType>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="IDREF" type=" xs:IDREF " use="required"/>
</xs:complexType>
</xs:element>
top

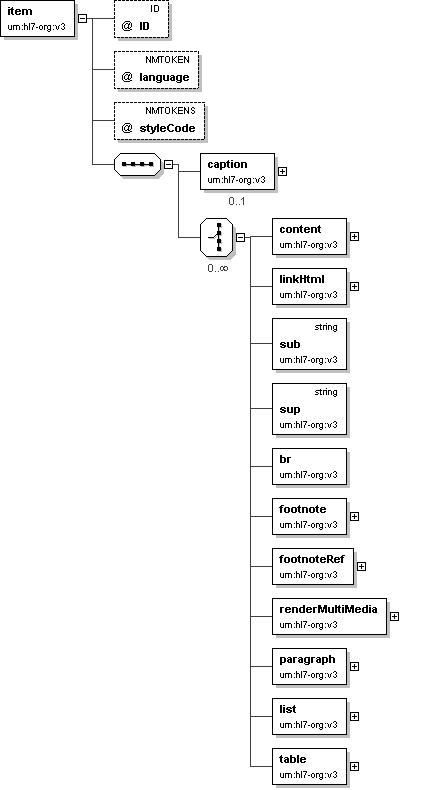

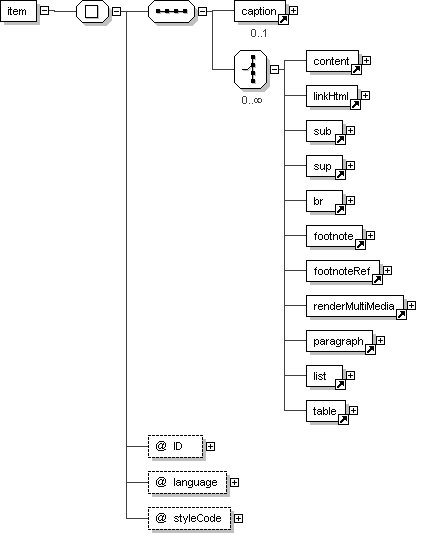

Element: item

Name item
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<item
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<!-- Mixed content -->
<caption> ... </caption> [0..1]
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
<paragraph> ... </paragraph> [1]
<list> ... </list> [1]
<table> ... </table> [1]
End Choice
</item>
Diagram
Schema Component Representation
<xs:element name="item">
<xs:complexType mixed="true">
<xs:sequence>
<xs:element ref=" caption " minOccurs="0"/>
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
<xs:element ref=" paragraph "/>
<xs:element ref=" list "/>
<xs:element ref=" table "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

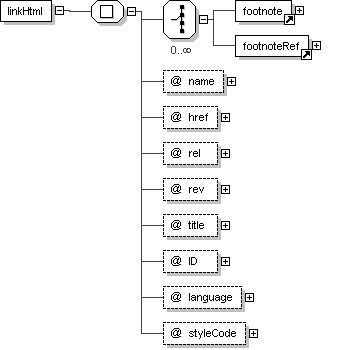

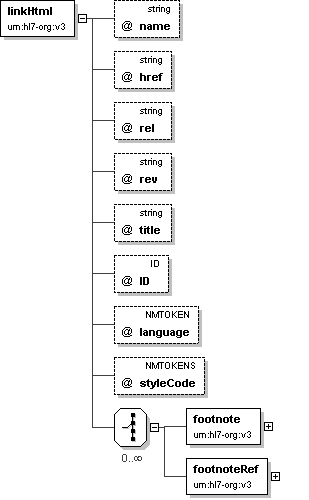

Element: linkHtml

Name linkHtml
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<linkHtml
name=" xs:string [0..1]"
href=" xs:string [0..1]"
rel=" xs:string [0..1]"
rev=" xs:string [0..1]"
title=" xs:string [0..1]"
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
End Choice
</linkHtml>
Diagram
Schema Component Representation
<xs:element name="linkHtml">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
</xs:choice>
<xs:attribute name="name" type=" xs:string "/>
<xs:attribute name="href" type=" xs:string "/>
<xs:attribute name="rel" type=" xs:string "/>
<xs:attribute name="rev" type=" xs:string "/>
<xs:attribute name="title" type=" xs:string "/>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

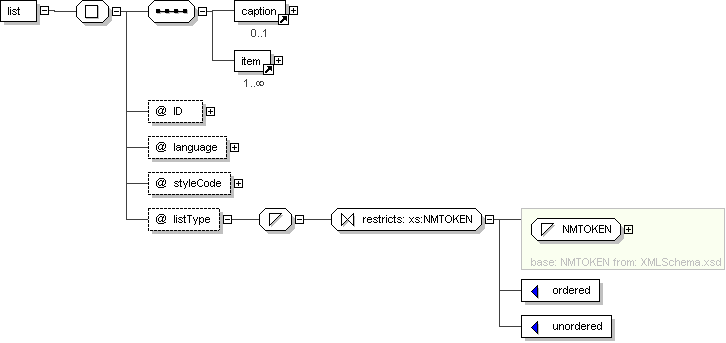

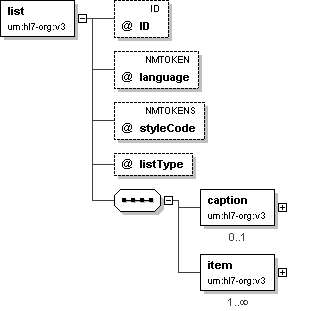

Element: list

Name list
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<list
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
listType=" xs:NMTOKEN (value comes from list: {'ordered'|'unordered'}) [0..1]">
<caption> ... </caption> [0..1]
<item> ... </item> [1..*]
</list>
Diagram
Schema Component Representation
<xs:element name="list">
<xs:complexType>
<xs:sequence>
<xs:element ref=" caption " minOccurs="0"/>
<xs:element ref=" item " maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="listType" default="unordered">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="ordered"/>
<xs:enumeration value="unordered"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

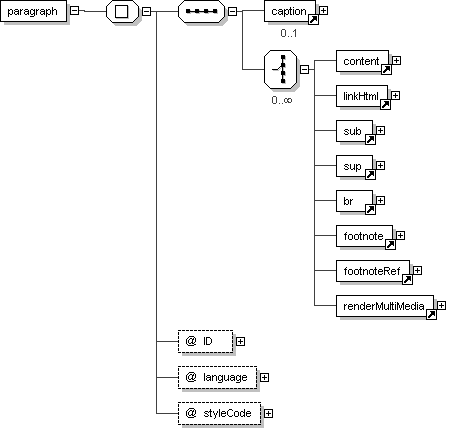

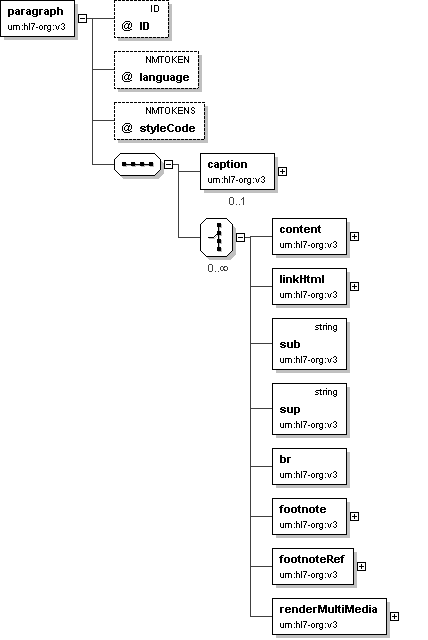

Element: paragraph

Name paragraph
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<paragraph
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<!-- Mixed content -->
<caption> ... </caption> [0..1]
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
End Choice
</paragraph>
Diagram
Schema Component Representation
<xs:element name="paragraph">
<xs:complexType mixed="true">
<xs:sequence>
<xs:element ref=" caption " minOccurs="0"/>
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
</xs:choice>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

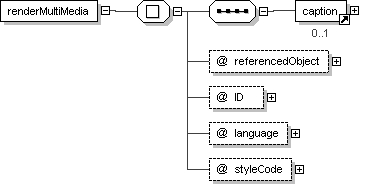

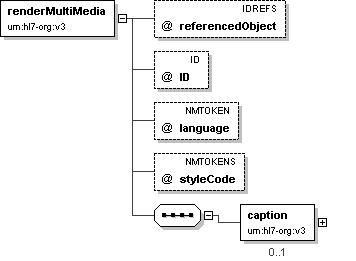

Element: renderMultiMedia

Name renderMultiMedia
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<renderMultiMedia
referencedObject=" xs:IDREFS [1]"
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]">
<caption> ... </caption> [0..1]
</renderMultiMedia>
Diagram
Schema Component Representation
<xs:element name="renderMultiMedia">
<xs:complexType>
<xs:sequence>
<xs:element ref=" caption " minOccurs="0"/>
</xs:sequence>
<xs:attribute name="referencedObject" type=" xs:IDREFS " use="required"/>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
</xs:complexType>
</xs:element>
top

Element: sub

Name sub
Type xs:string
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<sub> xs:string </sub>
Diagram
Schema Component Representation
<xs:element name="sub" type=" xs:string "/>
top

Element: sup

Name sup
Type xs:string
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<sup> xs:string </sup>
Diagram
Schema Component Representation
<xs:element name="sup" type=" xs:string "/>
top

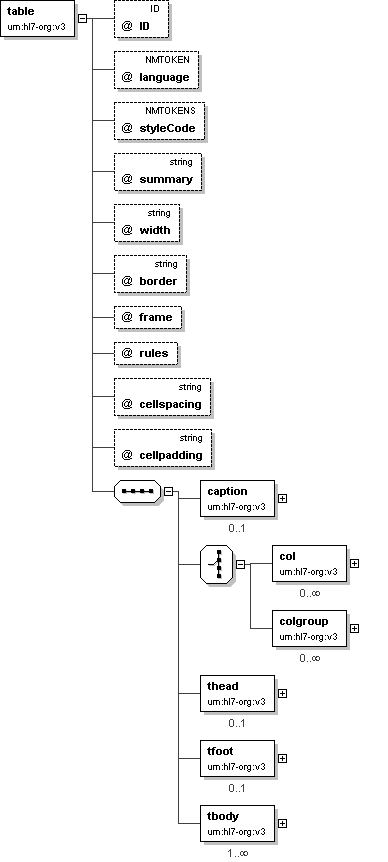

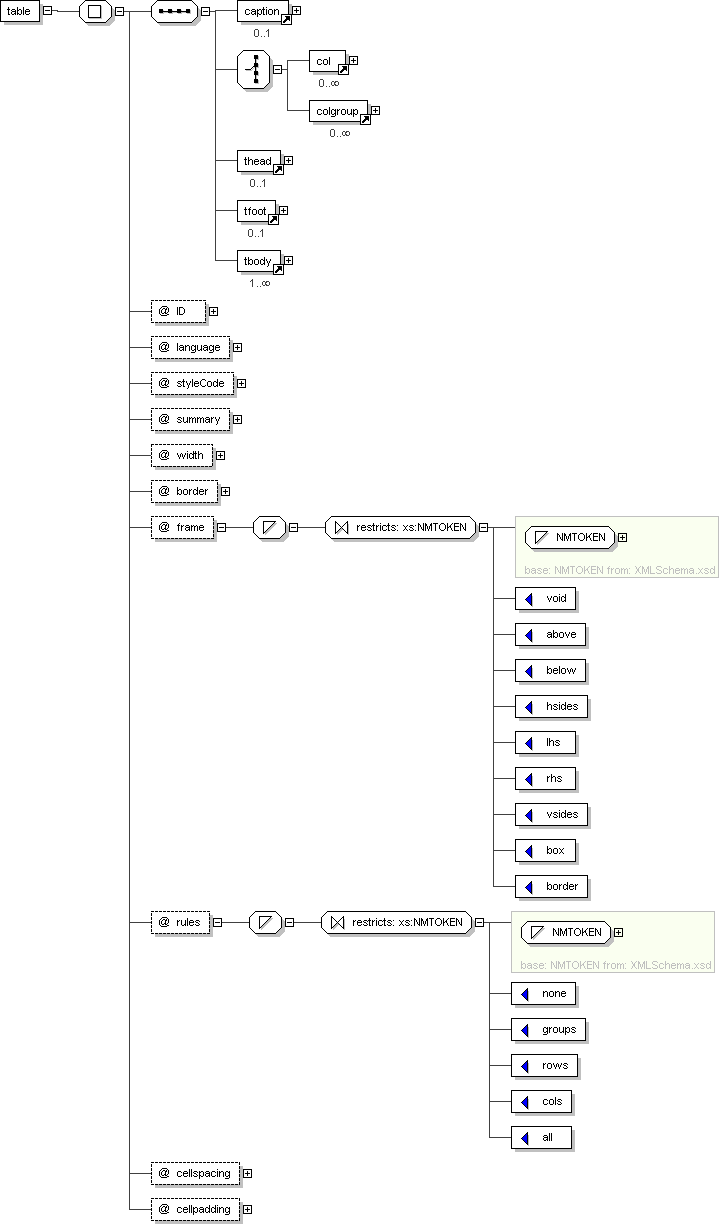

Element: table

Name table
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<table
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
summary=" xs:string [0..1]"
width=" xs:string [0..1]"
border=" xs:string [0..1]"
frame=" xs:NMTOKEN (value comes from list: {'void'|'above'|'below'|'hsides'|'lhs'|'rhs'|'vsides'|'box'|'border'}) [0..1]"
rules=" xs:NMTOKEN (value comes from list: {'none'|'groups'|'rows'|'cols'|'all'}) [0..1]"
cellspacing=" xs:string [0..1]"
cellpadding=" xs:string [0..1]">
<caption> ... </caption> [0..1]
Start Choice [1]
<col> ... </col> [0..*]
<colgroup> ... </colgroup> [0..*]
End Choice
<thead> ... </thead> [0..1]
<tfoot> ... </tfoot> [0..1]
<tbody> ... </tbody> [1..*]
</table>
Diagram
Schema Component Representation
<xs:element name="table">
<xs:complexType>
<xs:sequence>
<xs:element ref=" caption " minOccurs="0"/>
<xs:choice>
<xs:element ref=" col " minOccurs="0" maxOccurs="unbounded"/>
<xs:element ref=" colgroup " minOccurs="0" maxOccurs="unbounded"/>
</xs:choice>
<xs:element ref=" thead " minOccurs="0"/>
<xs:element ref=" tfoot " minOccurs="0"/>
<xs:element ref=" tbody " maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="summary" type=" xs:string "/>
<xs:attribute name="width" type=" xs:string "/>
<xs:attribute name="border" type=" xs:string "/>
<xs:attribute name="frame">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="void"/>
<xs:enumeration value="above"/>
<xs:enumeration value="below"/>
<xs:enumeration value="hsides"/>
<xs:enumeration value="lhs"/>
<xs:enumeration value="rhs"/>
<xs:enumeration value="vsides"/>
<xs:enumeration value="box"/>
<xs:enumeration value="border"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="rules">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="none"/>
<xs:enumeration value="groups"/>
<xs:enumeration value="rows"/>
<xs:enumeration value="cols"/>
<xs:enumeration value="all"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="cellspacing" type=" xs:string "/>
<xs:attribute name="cellpadding" type=" xs:string "/>
</xs:complexType>
</xs:element>
top

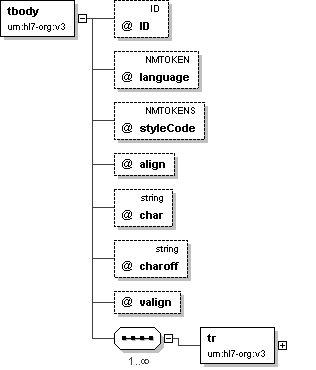

Element: tbody

Name tbody
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<tbody
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
Start Sequence [1..*]
<tr> ... </tr> [1]
End Sequence
</tbody>
Diagram
Schema Component Representation
<xs:element name="tbody">
<xs:complexType>
<xs:sequence maxOccurs="unbounded">
<xs:element ref=" tr "/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

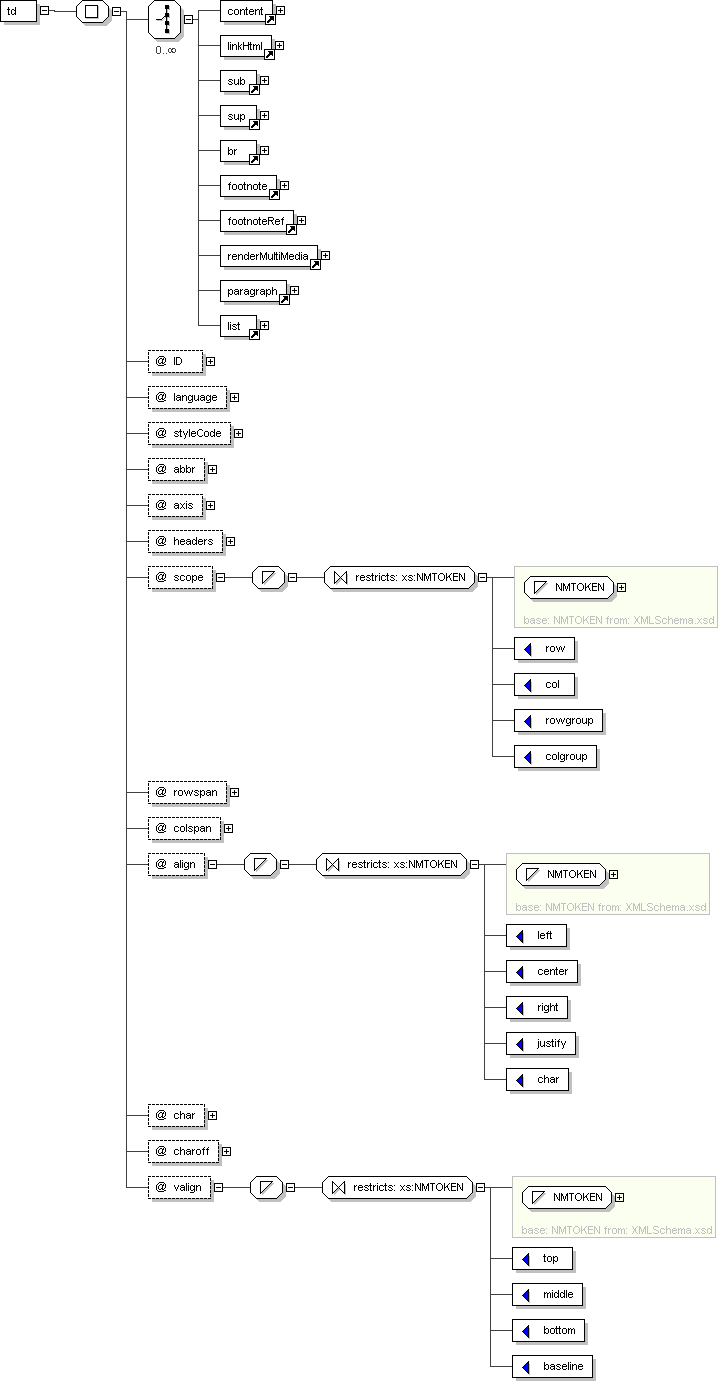

Element: td

Name td
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<td
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
abbr=" xs:string [0..1]"
axis=" xs:string [0..1]"
headers=" xs:IDREFS [0..1]"
scope=" xs:NMTOKEN (value comes from list: {'row'|'col'|'rowgroup'|'colgroup'}) [0..1]"
rowspan=" xs:string [0..1]"
colspan=" xs:string [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
<paragraph> ... </paragraph> [1]
<list> ... </list> [1]
End Choice
</td>

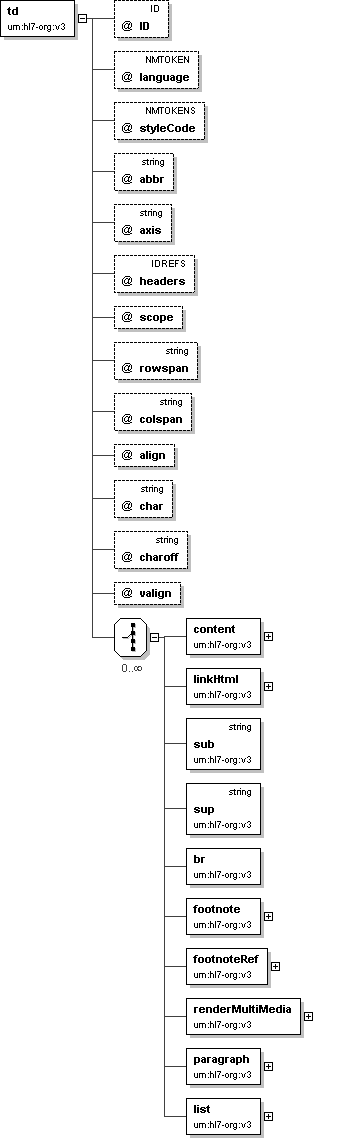

Diagram
Schema Component Representation
<xs:element name="td">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
<xs:element ref=" paragraph "/>
<xs:element ref=" list "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="abbr" type=" xs:string "/>
<xs:attribute name="axis" type=" xs:string "/>
<xs:attribute name="headers" type=" xs:IDREFS "/>
<xs:attribute name="scope">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="row"/>
<xs:enumeration value="col"/>
<xs:enumeration value="rowgroup"/>
<xs:enumeration value="colgroup"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="rowspan" type=" xs:string " default="1"/>
<xs:attribute name="colspan" type=" xs:string " default="1"/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

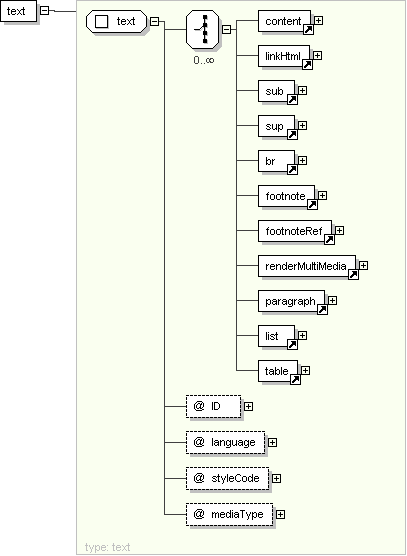

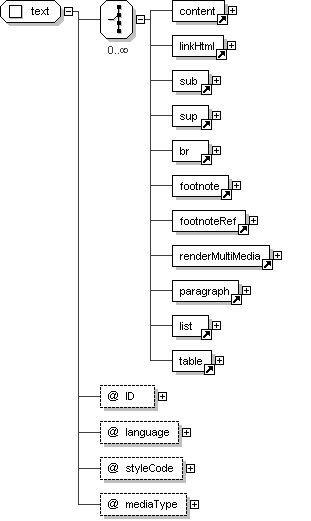

Element: text

Name text
Type text
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<text
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
mediaType="text/x-hl7-text+xml [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
<paragraph> ... </paragraph> [1]
<list> ... </list> [1]
<table> ... </table> [1]
End Choice
</text>
Diagram
Schema Component Representation
<xs:element name="text" type=" text "/>
top

Element: tfoot

Name tfoot
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<tfoot
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
Start Sequence [1..*]
<tr> ... </tr> [1]
End Sequence
</tfoot>

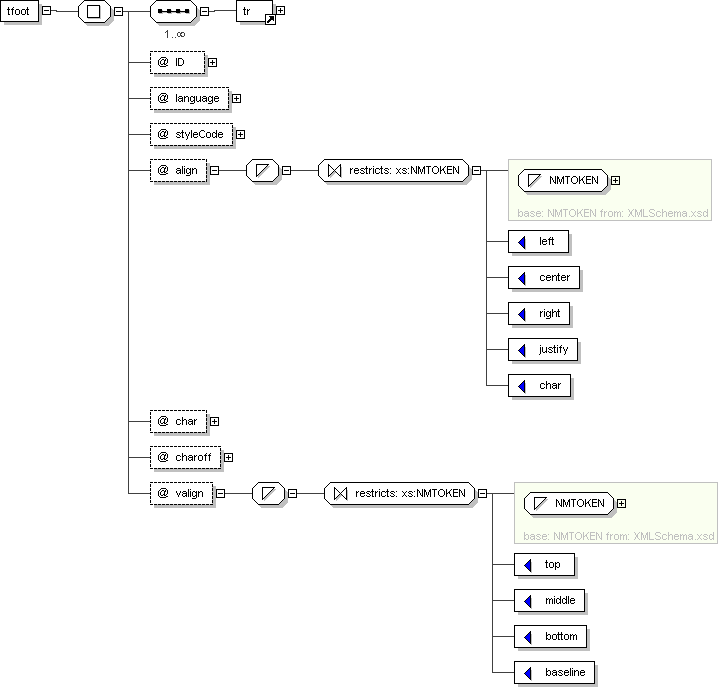

Diagram
Schema Component Representation
<xs:element name="tfoot">
<xs:complexType>
<xs:sequence maxOccurs="unbounded">
<xs:element ref=" tr "/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

Element: th

Name th
Type Locally-defined complex type
Nillable no
Abstract no

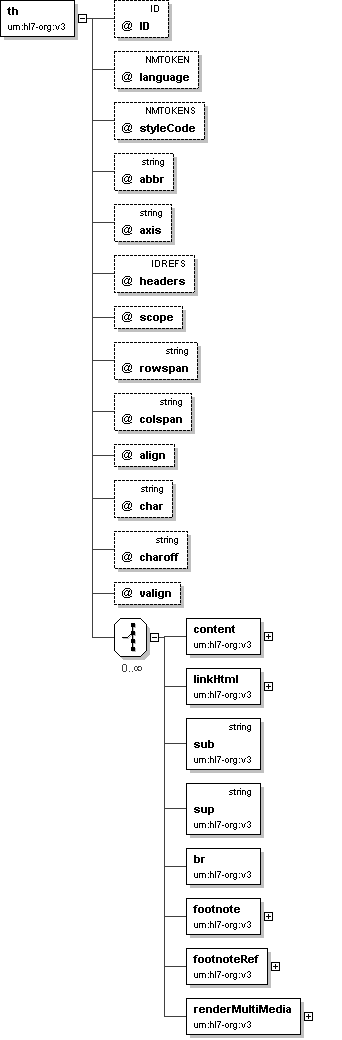

Logical Diagram
XML Instance Representation
<th
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
abbr=" xs:string [0..1]"
axis=" xs:string [0..1]"
headers=" xs:IDREFS [0..1]"
scope=" xs:NMTOKEN (value comes from list: {'row'|'col'|'rowgroup'|'colgroup'}) [0..1]"
rowspan=" xs:string [0..1]"
colspan=" xs:string [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
End Choice
</th>
Diagram
Schema Component Representation
<xs:element name="th">
<xs:complexType mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="abbr" type=" xs:string "/>
<xs:attribute name="axis" type=" xs:string "/>
<xs:attribute name="headers" type=" xs:IDREFS "/>
<xs:attribute name="scope">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="row"/>
<xs:enumeration value="col"/>
<xs:enumeration value="rowgroup"/>
<xs:enumeration value="colgroup"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="rowspan" type=" xs:string " default="1"/>
<xs:attribute name="colspan" type=" xs:string " default="1"/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

Element: thead

Name thead
Type Locally-defined complex type
Nillable no
Abstract no
Logical Diagram
XML Instance Representation
<thead
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
Start Sequence [1..*]
<tr> ... </tr> [1]
End Sequence
</thead>

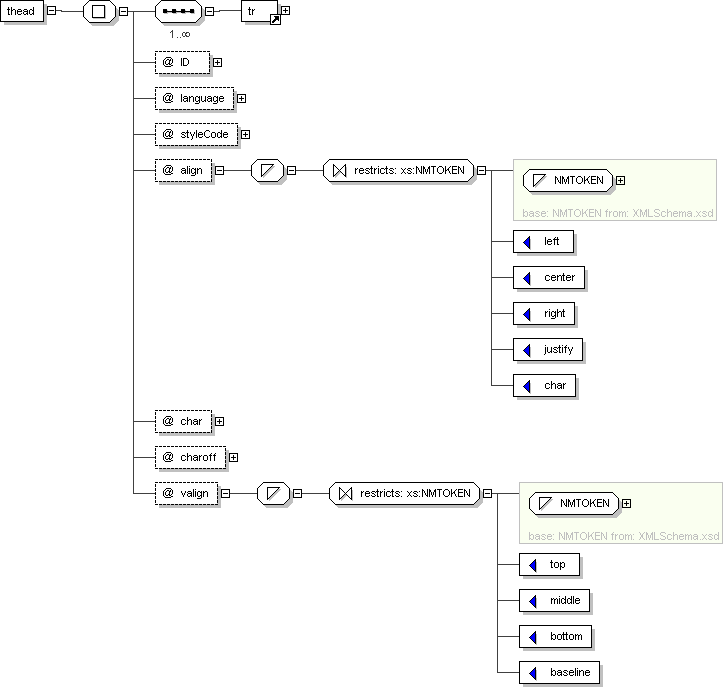

Diagram
Schema Component Representation
<xs:element name="thead">
<xs:complexType>
<xs:sequence maxOccurs="unbounded">
<xs:element ref=" tr "/>
</xs:sequence>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

Element: tr

Name tr
Type Locally-defined complex type
Nillable no
Abstract no

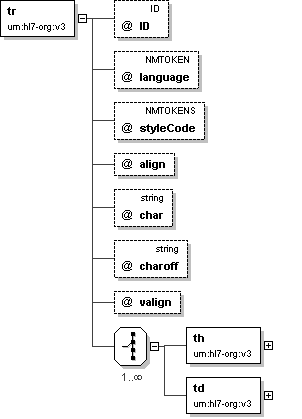

Logical Diagram
XML Instance Representation
<tr
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
align=" xs:NMTOKEN (value comes from list: {'left'|'center'|'right'|'justify'|'char'}) [0..1]"
char=" xs:string [0..1]"
charoff=" xs:string [0..1]"
valign=" xs:NMTOKEN (value comes from list: {'top'|'middle'|'bottom'|'baseline'}) [0..1]">
Start Choice [1..*]
<th> ... </th> [1]
<td> ... </td> [1]
End Choice
</tr>

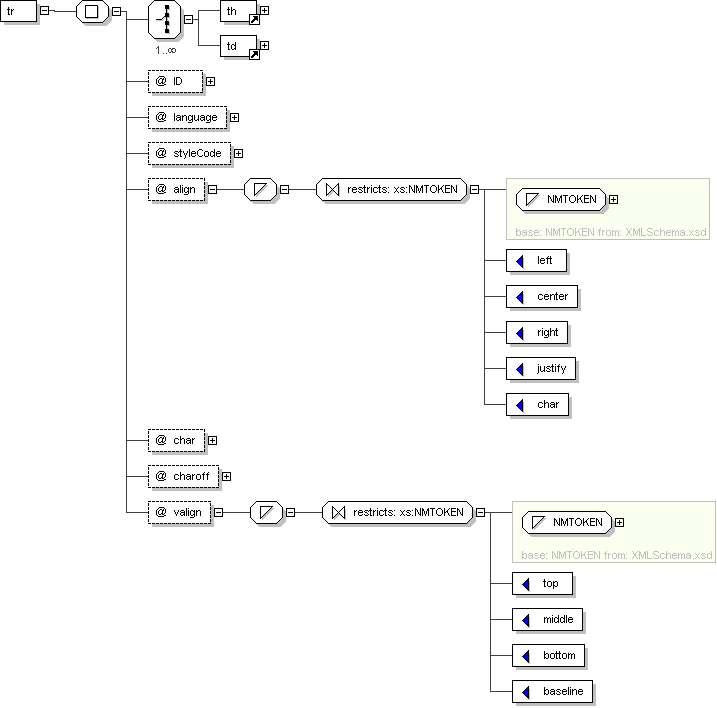

Diagram
Schema Component Representation
<xs:element name="tr">
<xs:complexType>
<xs:choice maxOccurs="unbounded">
<xs:element ref=" th "/>
<xs:element ref=" td "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="align">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="left"/>
<xs:enumeration value="center"/>
<xs:enumeration value="right"/>
<xs:enumeration value="justify"/>
<xs:enumeration value="char"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="char" type=" xs:string "/>
<xs:attribute name="charoff" type=" xs:string "/>
<xs:attribute name="valign">
<xs:simpleType>
<xs:restriction base=" xs:NMTOKEN ">
<xs:enumeration value="top"/>
<xs:enumeration value="middle"/>
<xs:enumeration value="bottom"/>
<xs:enumeration value="baseline"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
top

Global Definitions

Complex Type: text

Super-types: None
Sub-types: None
Name text
Abstract no
XML Instance Representation
<...
ID=" xs:ID [0..1]"
language=" xs:NMTOKEN [0..1]"
styleCode=" xs:NMTOKENS [0..1]"
mediaType="text/x-hl7-text+xml [0..1]">
<!-- Mixed content -->
Start Choice [0..*]
<content> ... </content> [1]
<linkHtml> ... </linkHtml> [1]
<sub> ... </sub> [1]
<sup> ... </sup> [1]
<br> ... </br> [1]
<footnote> ... </footnote> [1]
<footnoteRef> ... </footnoteRef> [1]
<renderMultiMedia> ... </renderMultiMedia> [1]
<paragraph> ... </paragraph> [1]
<list> ... </list> [1]
<table> ... </table> [1]
End Choice
</...>
Diagram
Schema Component Representation
<xs:complexType name="text" mixed="true">
<xs:choice minOccurs="0" maxOccurs="unbounded">
<xs:element ref=" content "/>
<xs:element ref=" linkHtml "/>
<xs:element ref=" sub "/>
<xs:element ref=" sup "/>
<xs:element ref=" br "/>
<xs:element ref=" footnote "/>
<xs:element ref=" footnoteRef "/>
<xs:element ref=" renderMultiMedia "/>
<xs:element ref=" paragraph "/>
<xs:element ref=" list "/>
<xs:element ref=" table "/>
</xs:choice>
<xs:attribute name="ID" type=" xs:ID "/>
<xs:attribute name="language" type=" xs:NMTOKEN "/>
<xs:attribute name="styleCode" type=" xs:NMTOKENS "/>
<xs:attribute name="mediaType" type=" xs:string " fixed="text/x-hl7-text+xml"/>
</xs:complexType>
top

Legend

Complex Type:

Schema Component Type

AusAddress

Schema Component Name
Super-types: Address < AusAddress (by extension)
Sub-types:
  • QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
Name AusAddress
Abstract no
The table above displays the properties of this schema component.
XML Instance Representation
<... country="Australia" >
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice [1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1] ?
</...>

The XML Instance Representation table above shows the schema component's content as an XML instance.

Schema Component Representation
<complexType name="AusAddress">
<complexContent>
<extension base=" Address ">
<sequence>
<element name="state" type=" AusStates "/>
<element name="postcode">
<simpleType>
<restriction base=" string ">
<pattern value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute name="country" type=" string " fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
top

Glossary

Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.

All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.

Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.

Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.

Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.

Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.

Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.

Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.

Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.

Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.

Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.

Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).

Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.

Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.

Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.

Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.

Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

top

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:
