Schema Document Properties

Target Namespace urn:hl7-org:v3
Element and Attribute Namespaces
  • Global element and attribute declarations belong to this schema's target namespace.
  • By default, local element declarations belong to this schema's target namespace.
  • By default, local attribute declarations have no namespace.
Schema Composition
  • This schema includes components from the following schema document(s):

Declared Namespaces

Prefix Namespace
Default namespace urn:hl7-org:v3
xml http://www.w3.org/XML/1998/namespace
xsd http://www.w3.org/2001/XMLSchema
xsi http://www.w3.org/2001/XMLSchema-instance
hl7 urn:hl7-org:v3
gsd http://aurora.regenstrief.org/GenericXMLSchema
Schema Component Representation
top

Global Definitions

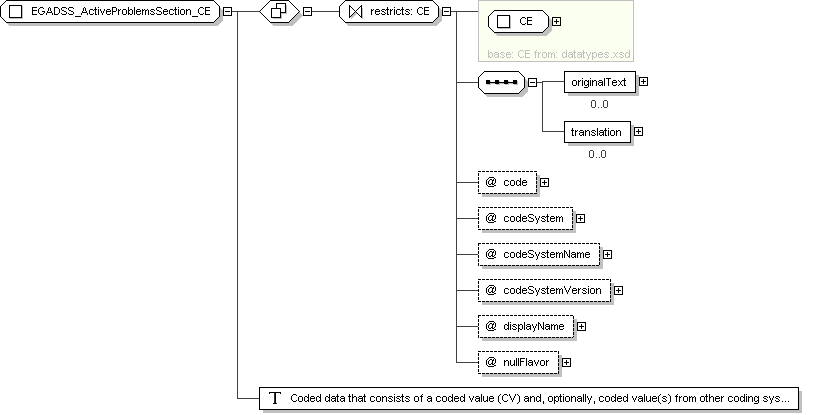

Complex Type: EGADSS_ActiveProblemsSection_CE

Super-types: CE < EGADSS_ActiveProblemsSection_CE (by restriction)
Sub-types: None
Name EGADSS_ActiveProblemsSection_CE
Abstract no
XML Instance Representation
<...
code="11450-4 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>

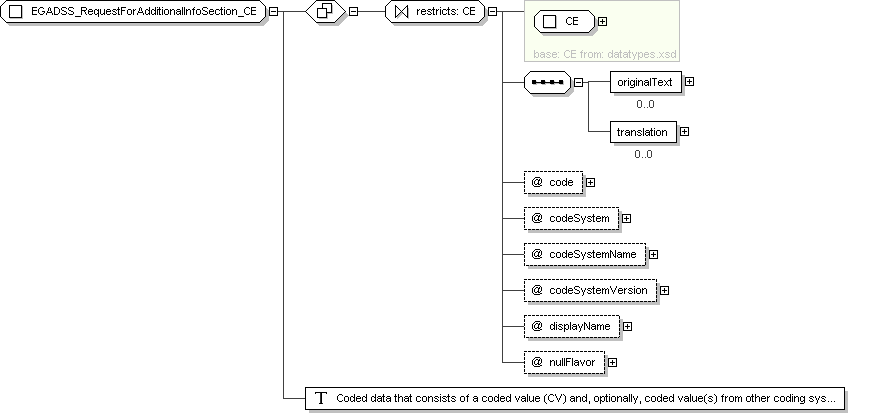

Diagram
Schema Component Representation
top

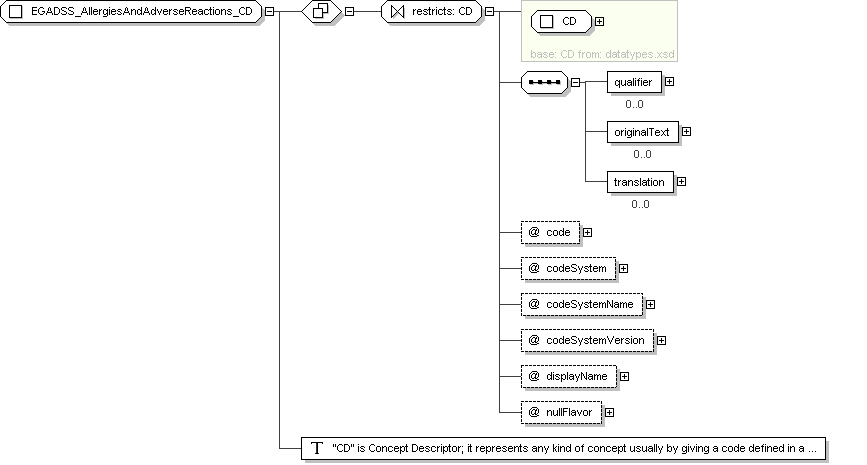

Complex Type: EGADSS_AllergiesAndAdverseReactions_CD

Super-types: CD < EGADSS_AllergiesAndAdverseReactions_CD (by restriction)
Sub-types: None
Name EGADSS_AllergiesAndAdverseReactions_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

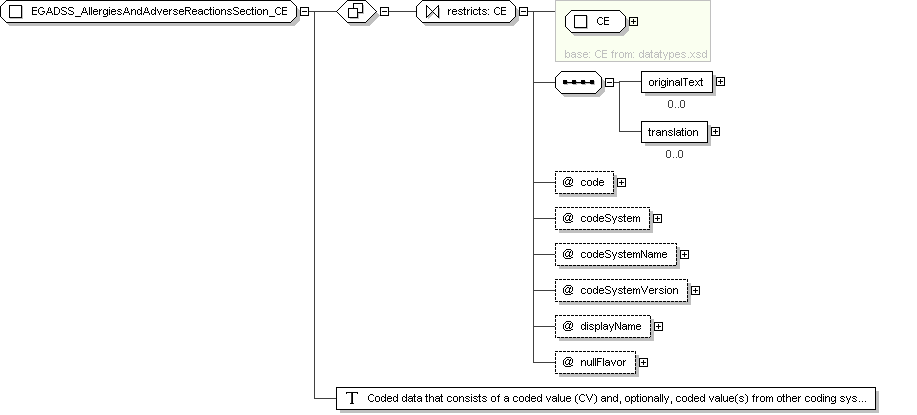

Complex Type: EGADSS_AllergiesAndAdverseReactionsSection_CE

Super-types: CE < EGADSS_AllergiesAndAdverseReactionsSection_CE (by restriction)
Sub-types: None
Name EGADSS_AllergiesAndAdverseReactionsSection_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

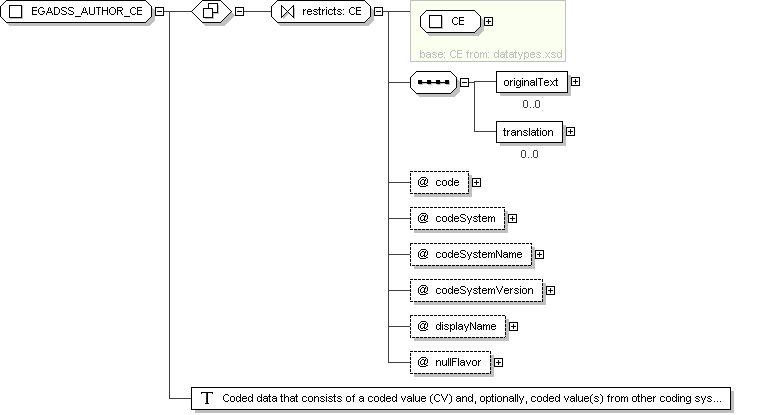

Complex Type: EGADSS_AUTHOR_CE

Super-types: CE < EGADSS_AUTHOR_CE (by restriction)
Sub-types: None
Name EGADSS_AUTHOR_CE
Abstract no
XML Instance Representation
<...

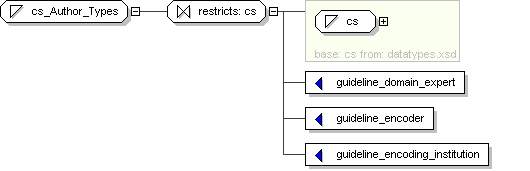

code=" cs_Author_Types [0..1]"
codeSystem=" uid [0..1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

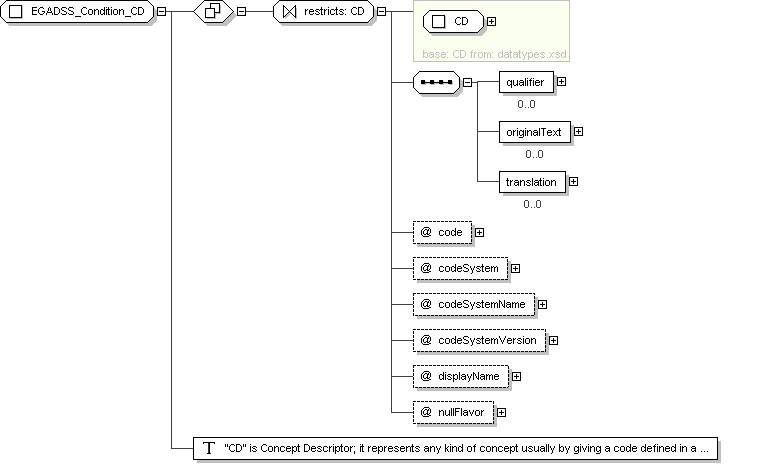

Complex Type: EGADSS_Condition_CD

Super-types: CD < EGADSS_Condition_CD (by restriction)
Sub-types: None
Name EGADSS_Condition_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

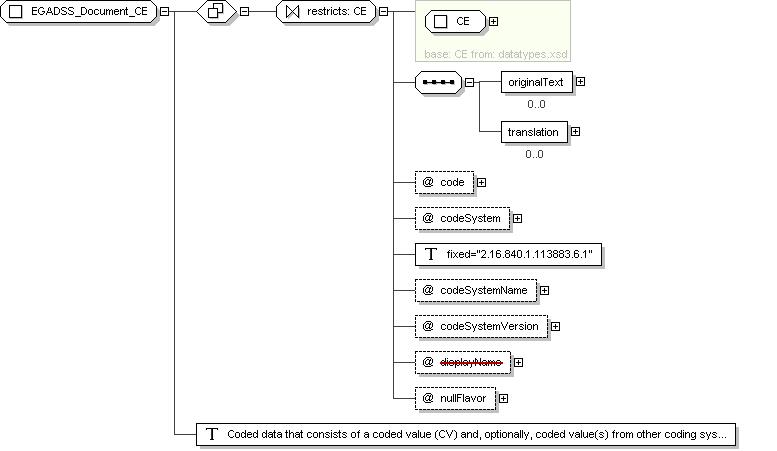

Complex Type: EGADSS_Document_CE

Super-types: CE < EGADSS_Document_CE (by restriction)
Sub-types: None
Name EGADSS_Document_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_Document_II

Super-types: II < EGADSS_Document_II (by restriction)
Sub-types: None
Name EGADSS_Document_II
Abstract no
XML Instance Representation
<...
root=" uid [1]"
extension=" st [1]"
assigningAuthorityName=" st [1]"
displayable=" bl [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_EMR_CE

Super-types: CE < EGADSS_EMR_CE (by restriction)
Sub-types: None
Name EGADSS_EMR_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

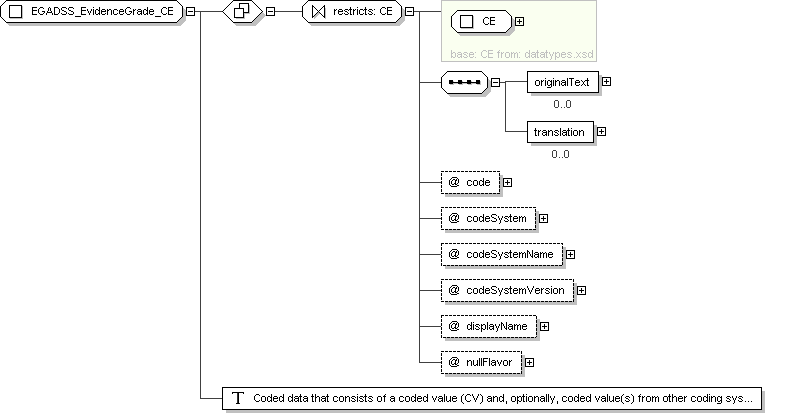

Complex Type: EGADSS_EvidenceGrade_CE

Super-types: CE < EGADSS_EvidenceGrade_CE (by restriction)
Sub-types: None
Name EGADSS_EvidenceGrade_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName="Recommendation_Evidence_Grade [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

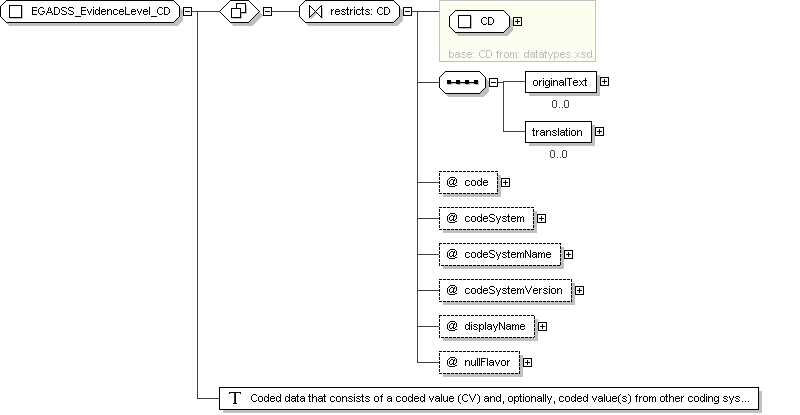

Complex Type: EGADSS_EvidenceLevel_CD

Super-types: CD < EGADSS_EvidenceLevel_CD (by restriction)
Sub-types: None
Name EGADSS_EvidenceLevel_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName="Recommendation_Evidence_Level [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

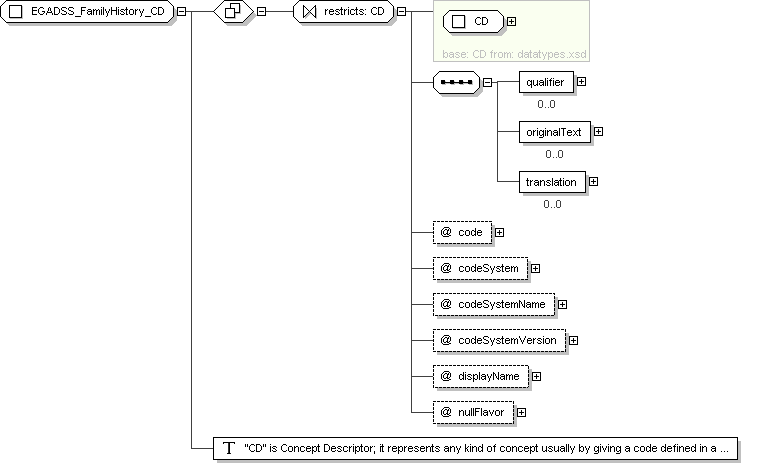

Complex Type: EGADSS_FamilyHistory_CD

Super-types: CD < EGADSS_FamilyHistory_CD (by restriction)
Sub-types: None
Name EGADSS_FamilyHistory_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

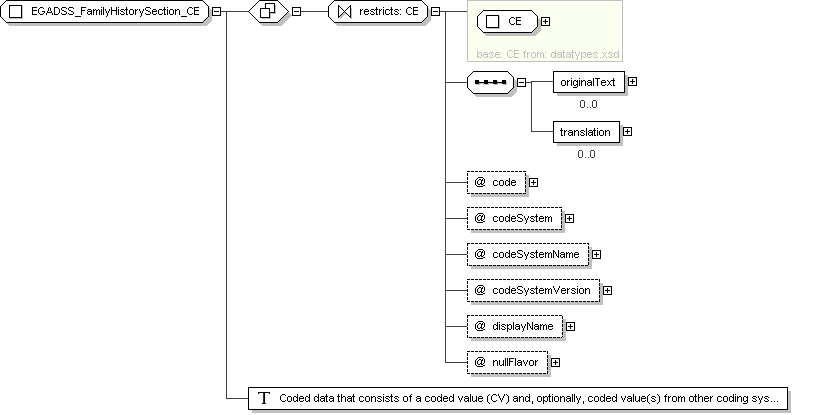

Complex Type: EGADSS_FamilyHistorySection_CE

Super-types: CE < EGADSS_FamilyHistorySection_CE (by restriction)
Sub-types: None
Name EGADSS_FamilyHistorySection_CE
Abstract no
XML Instance Representation
<...
code="10157-6 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

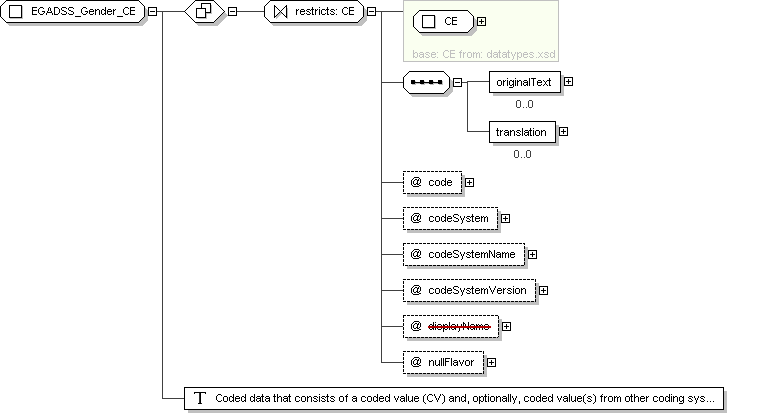

Complex Type: EGADSS_Gender_CE

Super-types: CE < EGADSS_Gender_CE (by restriction)
Sub-types: None
Name EGADSS_Gender_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem="2.16.840.1.113883.5.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

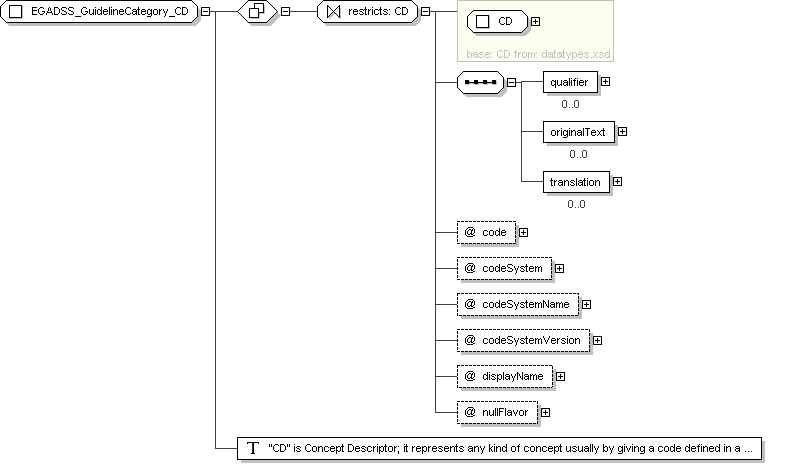

Complex Type: EGADSS_GuidelineCategory_CD

Super-types: CD < EGADSS_GuidelineCategory_CD (by restriction)
Sub-types: None
Name EGADSS_GuidelineCategory_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem="1.11.111.1 [1]"
codeSystemName="GuidelineCategories [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

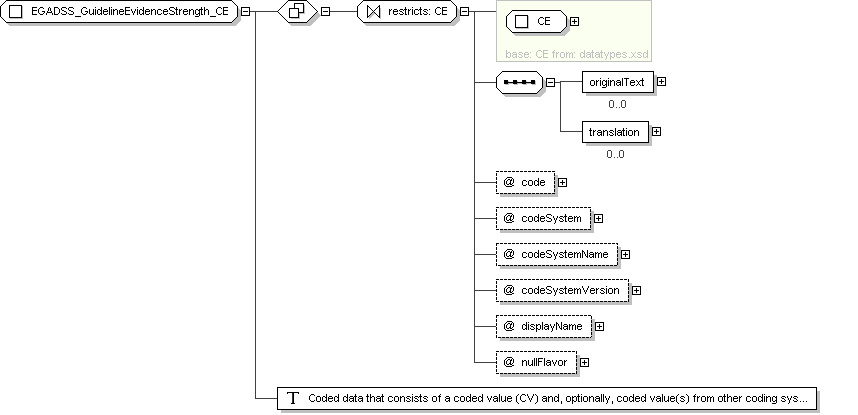

Complex Type: EGADSS_GuidelineEvidenceStrength_CE

Super-types: CE < EGADSS_GuidelineEvidenceStrength_CE (by restriction)
Sub-types: None
Name EGADSS_GuidelineEvidenceStrength_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName="Recommendation_Evidence_Grade [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_Immunization_CD

Super-types: CD < EGADSS_Immunization_CD (by restriction)
Sub-types: None
Name EGADSS_Immunization_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [0..1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_ImmunizationsSection_CE

Super-types: CE < EGADSS_ImmunizationsSection_CE (by restriction)
Sub-types: None
Name EGADSS_ImmunizationsSection_CE
Abstract no
XML Instance Representation
<...
code="11369-6 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

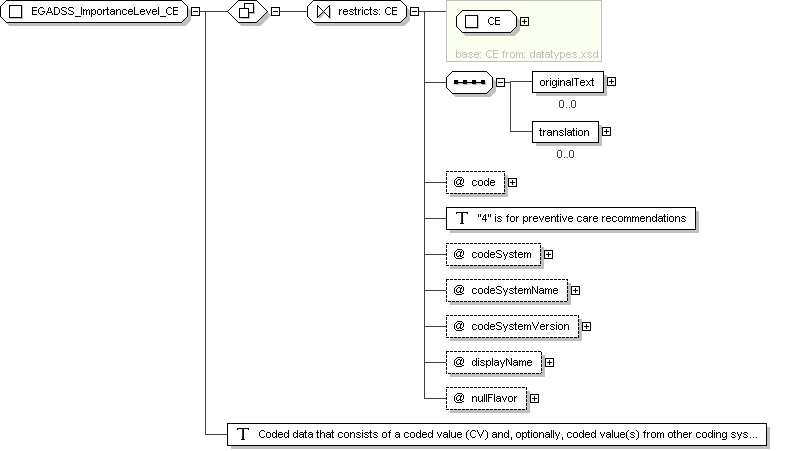

Complex Type: EGADSS_ImportanceLevel_CE

Super-types: CE < EGADSS_ImportanceLevel_CE (by restriction)
Sub-types: None
Name EGADSS_ImportanceLevel_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName="Recommendation_Importance_Level [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_LabeledDrug_CE

Super-types: CE < EGADSS_LabeledDrug_CE (by restriction)
Sub-types: None
Name EGADSS_LabeledDrug_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

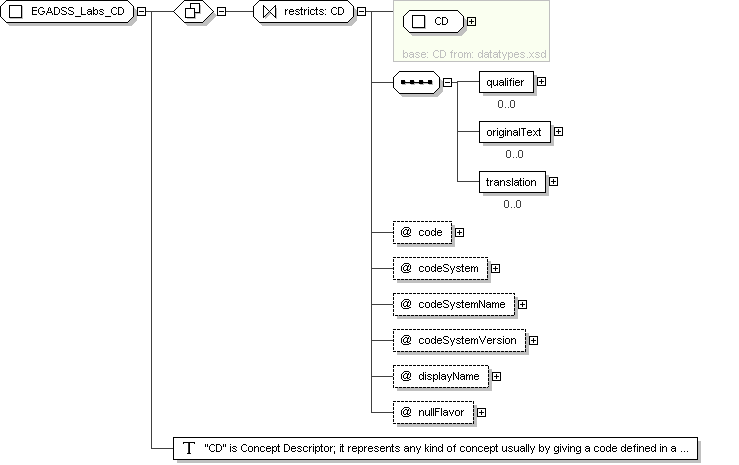

Complex Type: EGADSS_Labs_CD

Super-types: CD < EGADSS_Labs_CD (by restriction)
Sub-types: None
Name EGADSS_Labs_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_LabsSection_CE

Super-types: CE < EGADSS_LabsSection_CE (by restriction)
Sub-types: None
Name EGADSS_LabsSection_CE
Abstract no
XML Instance Representation
<...
code="11502-2 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

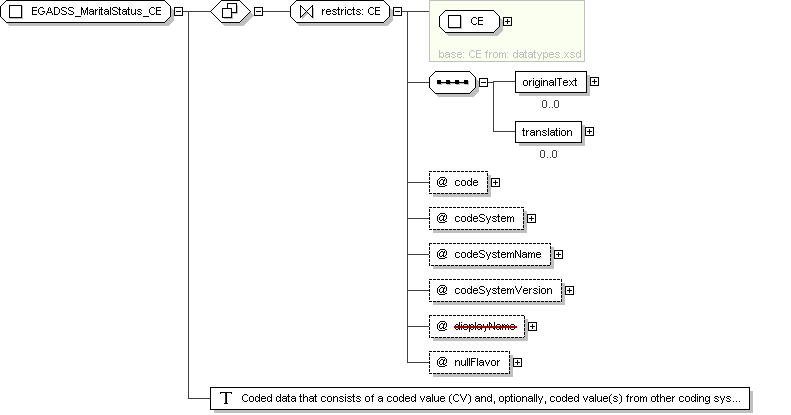

Complex Type: EGADSS_MaritalStatus_CE

Super-types: CE < EGADSS_MaritalStatus_CE (by restriction)
Sub-types: None
Name EGADSS_MaritalStatus_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem="2.16.840.1.113883.5.2 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_MedicationsSection_CE

Super-types: CE < EGADSS_MedicationsSection_CE (by restriction)
Sub-types: None
Name EGADSS_MedicationsSection_CE
Abstract no
XML Instance Representation
<...
code="19789-7 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_PastMedicalHistorySection_CE

Super-types: CE < EGADSS_PastMedicalHistorySection_CE (by restriction)
Sub-types: None
Name EGADSS_PastMedicalHistorySection_CE
Abstract no
XML Instance Representation
<...
code="11348-0 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

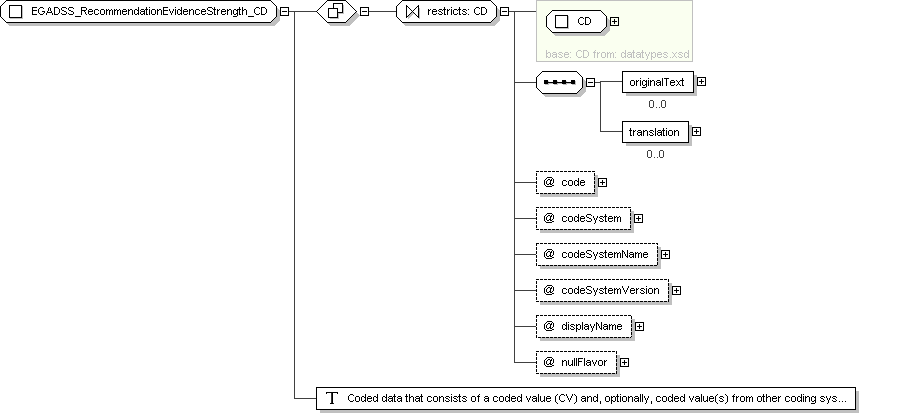

Complex Type: EGADSS_RecommendationEvidenceStrength_CD

Super-types: CD < EGADSS_RecommendationEvidenceStrength_CD (by restriction)
Sub-types: None
Name EGADSS_RecommendationEvidenceStrength_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName="Recommendation_Evidence_Grade [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_RecommendationsSection_CE

Super-types: CE < EGADSS_RecommendationsSection_CE (by restriction)
Sub-types: None
Name EGADSS_RecommendationsSection_CE
Abstract no
XML Instance Representation
<...
code="111 [1]"
codeSystem="111 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_RequestForAdditionalInfoSection_CE

Super-types: CE < EGADSS_RequestForAdditionalInfoSection_CE (by restriction)
Sub-types: None
Name EGADSS_RequestForAdditionalInfoSection_CE
Abstract no
XML Instance Representation
<...
code="222 [1]"
codeSystem="placeholder [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_SocialHistory_CD

Super-types: CD < EGADSS_SocialHistory_CD (by restriction)
Sub-types: None
Name EGADSS_SocialHistory_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_SocialHistorySection_CE

Super-types: CE < EGADSS_SocialHistorySection_CE (by restriction)
Sub-types: None
Name EGADSS_SocialHistorySection_CE
Abstract no
XML Instance Representation
<...
code="29762-2 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_SubstanceAdministrationRoute_CE

Super-types: CE < EGADSS_SubstanceAdministrationRoute_CE (by restriction)
Sub-types: None
Name EGADSS_SubstanceAdministrationRoute_CE
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_Surgical_CD

Super-types: CD < EGADSS_Surgical_CD (by restriction)
Sub-types: None
Name EGADSS_Surgical_CD
Abstract no
XML Instance Representation
<...
code=" cs [1]"
codeSystem=" uid [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Complex Type: EGADSS_SurgicalHistorySection_CE

Super-types: CE < EGADSS_SurgicalHistorySection_CE (by restriction)
Sub-types: None
Name EGADSS_SurgicalHistorySection_CE
Abstract no
XML Instance Representation
<...
code="10167-5 [1]"
codeSystem="2.16.840.1.113883.6.1 [1]"
codeSystemName=" st [0..1]"
codeSystemVersion=" st [0..1]"
displayName=" st [0..1]"
nullFlavor=" cs_NullFlavor [0..1]"/>
Diagram
Schema Component Representation
top

Simple Type: cs_Author_Types

Super-types: cs < cs_Author_Types (by restriction)
Sub-types: None
Name cs_Author_Types
Content
  • 'cs' super type was not found in this schema. Its facets could not be printed out.
  • value comes from list: {'guideline_domain_expert'|'guideline_encoder'|'guideline_encoding_institution'}
Diagram
Schema Component Representation
top

Legend

Complex Type:

Schema Component Type

AusAddress

Schema Component Name
Super-types: Address < AusAddress (by extension)
Sub-types:
  • QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
Name AusAddress
Abstract no
The table above displays the properties of this schema component.
XML Instance Representation
<... country="Australia" >
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice [1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1] ?
</...>

The XML Instance Representation table above shows the schema component's content as an XML instance.

Schema Component Representation
<complexType name="AusAddress">
<complexContent>
<extension base=" Address ">
<sequence>
<element name="state" type=" AusStates "/>
<element name="postcode">
<simpleType>
<restriction base=" string ">
<pattern value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute name="country" type=" string " fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
top

Glossary

Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.

All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.

Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.

Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.

Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.

Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.

Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.

Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.

Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.

Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.

Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.

Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).

Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.

Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.

Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.

Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.

Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

top

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified: 01/10/2006 22:29:40
